Available for Import

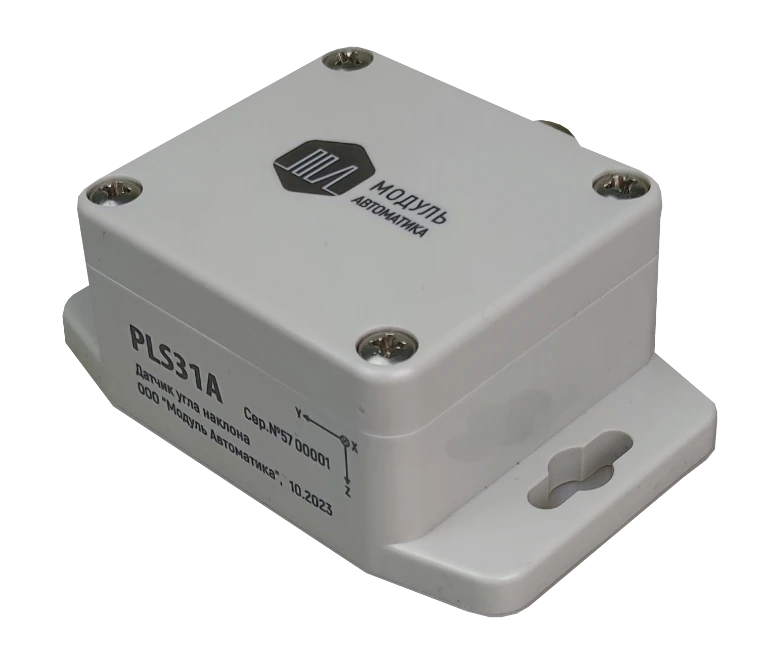

Tilt sensor PLS31A (inclinometer)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The PLS31A tilt angle sensor (inclinometer) is designed to measure the tilt angle relative to the direction of the Earth's gravitational field vector. The tilt angle is measured by means of an integrated MEMS-sensor and the tilt angle is calculated simultaneously in 3 planes. Connection is performed via RS-485 interface using Modbus RTU protocol.
The sensor corresponds to the type of climatic execution UHL1 according to GOST15150-69 and maintains operability at temperatures from minus 40 °? to 50 °? (from minus 40 °? to 50 °? depending on the version) and relative humidity up to 98 % at temperature +25 °?. Version variants: PLS31A and PLS31A-01.
The sensor corresponds to the type of climatic execution UHL1 according to GOST15150-69 and maintains operability at temperatures from minus 40 °? to 50 °? (from minus 40 °? to 50 °? depending on the version) and relative humidity up to 98 % at temperature +25 °?. Version variants: PLS31A and PLS31A-01.
Specifications
Power supply voltage
24 V
Interface type
RS-485 (Modbus RTU protocol)
Number of channels
1 pc
Number of interfaces RS-485/422/232
1 pc
Communication speed with I/O modules
19200
Completeness
Tilt angle sensor PLS31A (inclinometer), Labelling, Packaging pc
Measuring range
-180° to 180° in each of 3 planes
Basic absolute error
±0,5°
Additional error
±0,15°/10 °? °C
Degree of protection of the shell
IP65
Overall dimensions
94x77x35 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
