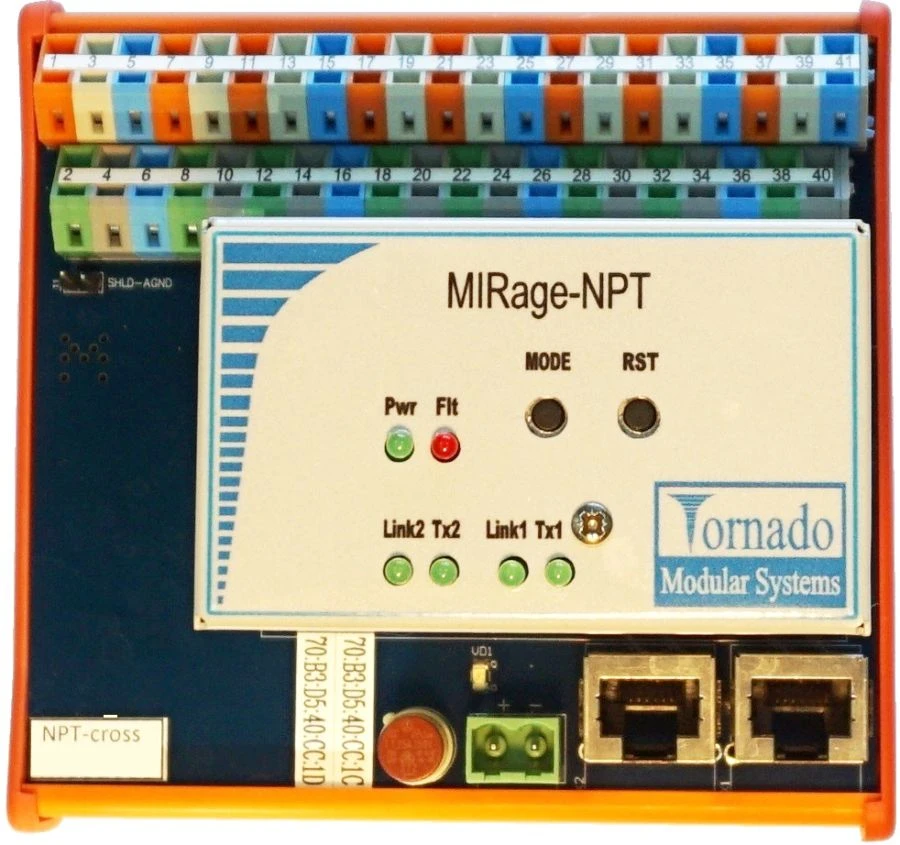

Device for input of signals of thermal resistance converters. 8 channels, group galvanic isolation (MIRage-NPT)

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The MIRage-NPT devices are designed to measure temperatures using resistance thermocouples (RTDs) of different graduations and transmit the measured values via redundant digital interface Ethernet 10/100 over twisted pair using ModBus protocol. The MIRage-NPT devices have 8 measuring channels (IR). The interface of each IR assumes connection of sensors on 4-wire, 3-wire and 2-wire scheme. MIRage-NPT devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Number of measuring channels 8 pc

Interface type Ethernet 10/100BaseTX - 2 channels

Request response time at 100 Mbit network speed, no more than 2

Data transfer rate 10

Data exchange protocol Modbus TCP/UDP slave

External supply voltage (+/- 15%) 24 V

Input impedance, more than 1 gOhm

Galvanic insulation Group

Overall dimensions 114x108x111 mm

Weight, not more 400 g

Mechanical design DIN rail mounting

Wago terminal block, conductor cross-section up to 2.5 mm2

Operating temperature range -25...70 °C

Consumption current, max. 95 mA

Measured resistance range at gain x1 0...3200 ohm

Maximum permissible input voltage Plus/minus 10 V

Maximum permissible input voltage -10...10 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
