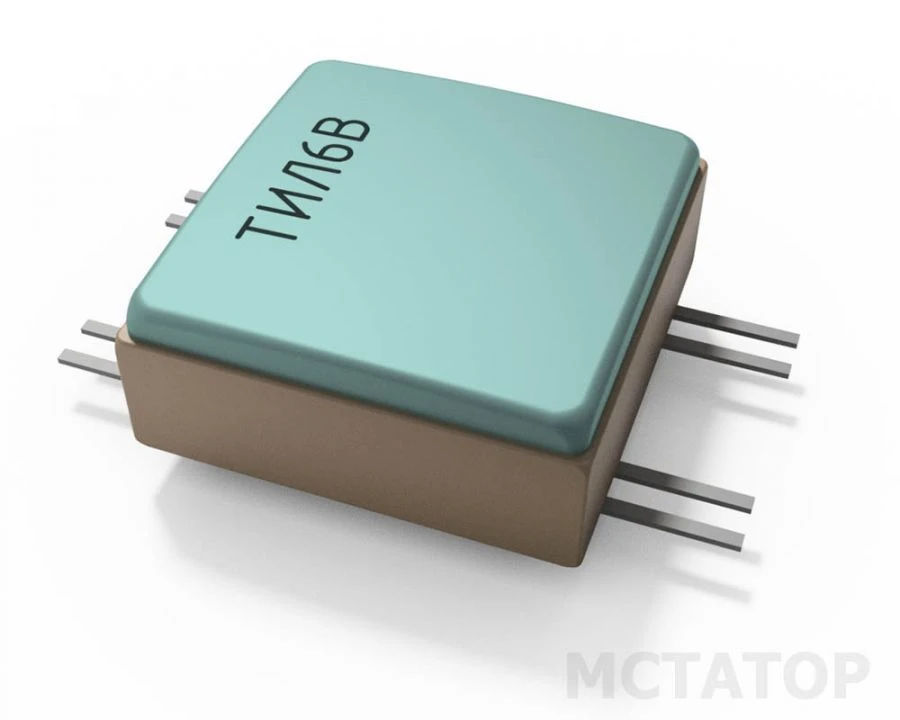

TIL6V type pulse linear transformers

Electric Transformers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Transformers pulse linear type TIL6V with high impedance value of linear winding are designed for galvanic isolation of subscribers with multiplex channel of information exchange (GOST R 52070, GOST 26765.52, MIL-STD-1553B).
Quality category "VP" and "OS".

Technical Specifications

Pulse peak drop at the output, not more than	20 %
Scattering inductance of I and II windings, not more than	6 (×10^-6)
In-phase signal attenuation coefficient, not less than	45
Resistance of linear (pins 8 and 5) winding (impedance) at F=75 kHz, not less than	4 (×10^3) ohm
Resistance of linear (pins 8 and 5) winding (impedance) at F=1 MHz, not less than	4 (×10^3) ohm
Capacitance between windings I, II and III-V, max.	45 (×10^-12)
Insulation resistance (voltage 100 V), not less than	500 (×10^6) ohm
Electrical insulation strength: DC voltage	250 V
Primary winding inductance (leads 1-4), not less than	6 (×10^-3)
Symmetry of generator windings	2 %
Ratio of number of turns (pins 1-4 : 7-6)	1 : 1,79
Ratio of number of turns (pins 1-4 : 8-5)	1 : 2,5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
