TIG Type Pulse Transformers for Hybrid Circuit Applications

Electric Transformers

Manufacturer: PJSC "MSTATOR"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

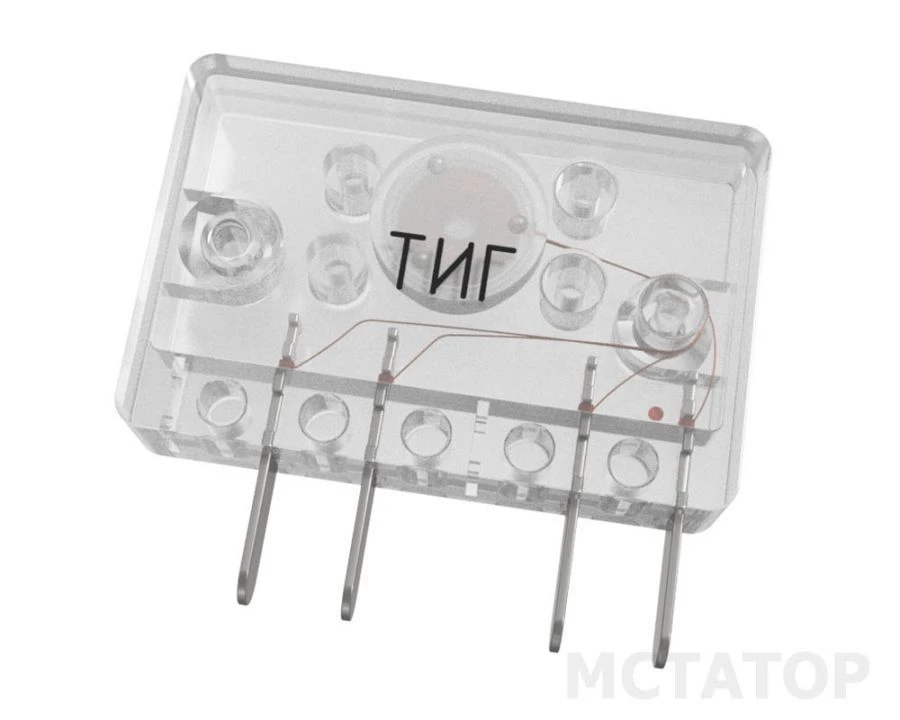

TIG type pulse transformers of open design are designed for operation in sealed hybrid film circuits and in circuits with printed and bulk mounting of pulse devices of special equipment with operating voltage up to 10V and the product of pulse duration on the input voltage from 1.0 to 50.0 ?s?V. Quality category "VP" and "OS".

Specifications

Product of pulse duration by input pulse voltage

1.0 to 50.0 (×10^-6)

Operating temperature range

-60...85 °C

Primary winding inductance, not less than

0.1 to 5(×10^-3)

Scattering inductance, not more

0.7 to 25 (×10^-6)

Capacitance between primary and each secondary winding, not more than

10 to 110(×10^-12)

Electrical insulation strength: DC voltage

100 V

Insulation resistance, not less

100 (×10^6) ohm

Magnetizing current, not more

10 (×10^-3) A

Transformation ratio

0.335, 5, 1
