Thyristor starting device PU-6-08R UHL4 of turbogenerator TZFG-160

Static Power Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

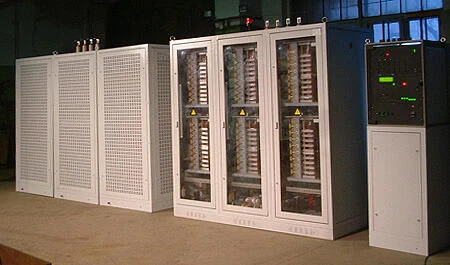

Thyristor starting device PU-6-08R UHL4, hereinafter referred to as "PU", is designed for starting in the operating mode of gas-turbogenerator unit with gas turbine engine GTE-170 and turbogenerator TZFG-160 - 2MU3. The PU ensures the unit rotation when performing other technological modes: "flushing", "venting", etc. When starting the unit and its rotation in technological modes, the turbine generator is used as a synchronous motor powered by the PU. When powered from the PU, the turbine generator excitation should be provided by the standard static excitation system (SE) starting from the stationary state. The PU includes the following equipment: thyristor frequency converter, hereinafter referred to as "converter" 1 pc; current limiting reactors for installation at the input and output of the converter 2 pcs; The converter includes the following equipment: power rectifier cabinet 1 pc; power inverter cabinet 1 pc; control cabinet 1 pc; smoothing reactor 1 pc.

Technical Specifications

Nominal frequency of input voltage	SBVVBG
Output voltage regulation range	0...6000 V
Rated input current	800
Phase inductance at 50 Hz	0.5 ohm
Permissible surge current	16
Nominal voltage	6000 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
