High Voltage Static Converter PVS-65-01-U1 for Centralized Power Supply in Trains

Static Power Converters

Manufacturer: GAMEM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

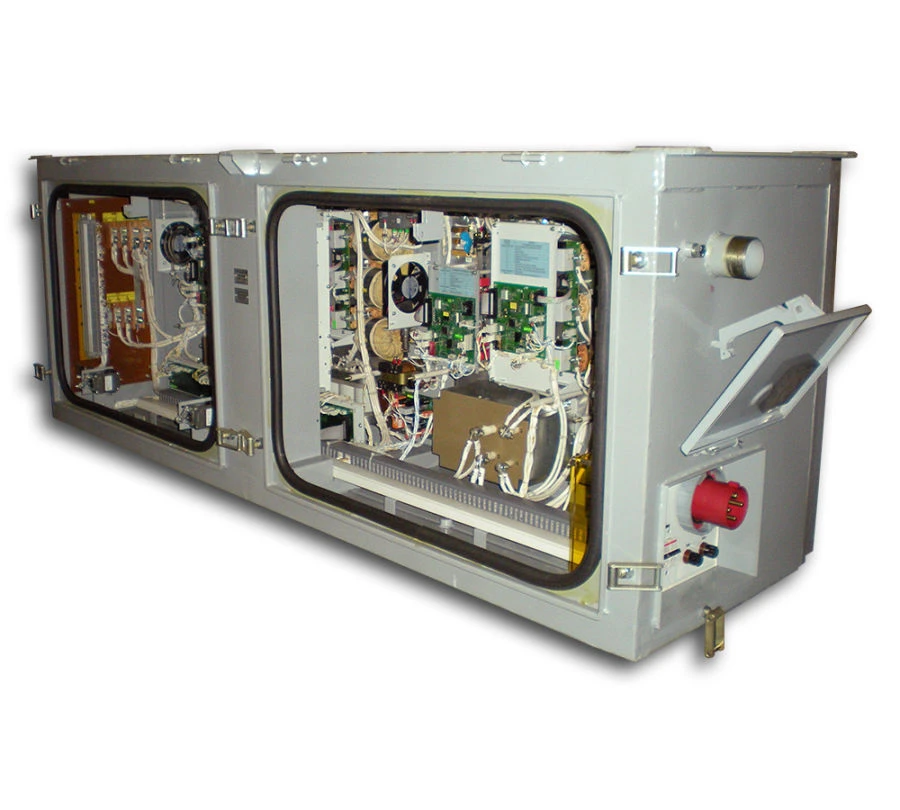

PVS-65-01-U1 is designed to provide centralised power supply from the high-voltage train main line for single-deck passenger cars in trains Moscow-Yaroslavl, Moscow-Samara, Moscow-Belgorod. PVS-65-01-U1 consists of high-voltage and low-voltage parts, which are located in 2 standard hermetic undercarriage boxes. Any supply voltage can be applied to the converter input: 3000V and 1500V DC, 3000V and 1500V AC with frequency 50Hz and 1000V AC with frequency 16 2/3 Hz.

The converter at parking can function at supply from external AC network 3 x 380 V; 50 Hz with deviations of network voltage 10% from the nominal value. Control circuits of converters are supplied from the train mains of direct current 110 V +-30%. Output voltage of 2 channels of the high-voltage part can vary depending on the composition and characteristics of power consumers.

There are 28 units in operation.

Specifications

Output line voltage (AC power supply channel)

220 V

Input voltage (AC consumer power supply channel)

425 V

Output maximum power when supplied from 3x380V, 50Hz mains (DC power supply channel including battery charging)

B1/B8 2100/900 MHz kW

Output maximum power when supplied from the high-voltage trunk line (DC consumer supply channel, including socket).

20 kW

Maximum current (DC consumer power supply channel, including battery charging)

140A, including battery charging current - 25A

Output voltage (DC consumer power supply channel, including battery charging)

110 V

Input voltage (DC consumer power supply channel, including battery charging)

160 V

Output power (supply duct for supply fan motor)

Rated current (supply duct for supply fan motor)

7.9 A

Frequency (supply duct of supply fan motor)

SBVVBG

Number of phases (supply duct of supply fan motor)

3 pcs

Output line voltage (supply line to supply fan motor)

220 V

Input voltage (supply voltage of the supply fan motor)

425 pcs

Input voltage (compressor motor supply)

425 V

Output line voltage (compressor motor supply)

220 V

Number of phases (compressor motor supply channel)

3 pcs

Frequency (compressor motor supply channel)

SBVVBG

Rated current (compressor motor supply line)

39 A

Maximum power output (compressor motor supply channel)

Input voltage (VHF condenser fan motor supply channel)

425 V

Output line voltage (VHF condenser fan motor supply channel)

220 V

Number of phases (VHF condenser fan motor supply channel)

3 pcs

Frequency (VHF condenser fan motor supply channel)

SBVVBG

Rated current (VHF condenser fan motor supply channel)

9.2 A

Output power (VHF condenser fan motor supply channel)

Overall dimensions of the NSP cabinet (DxWxH)

2060x670x723 mm

Overall dimensions of the VSP cabinet (DxWxH)

2150x765x730 mm

Output rated power (compressor motor supply channel)

15 kW

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
