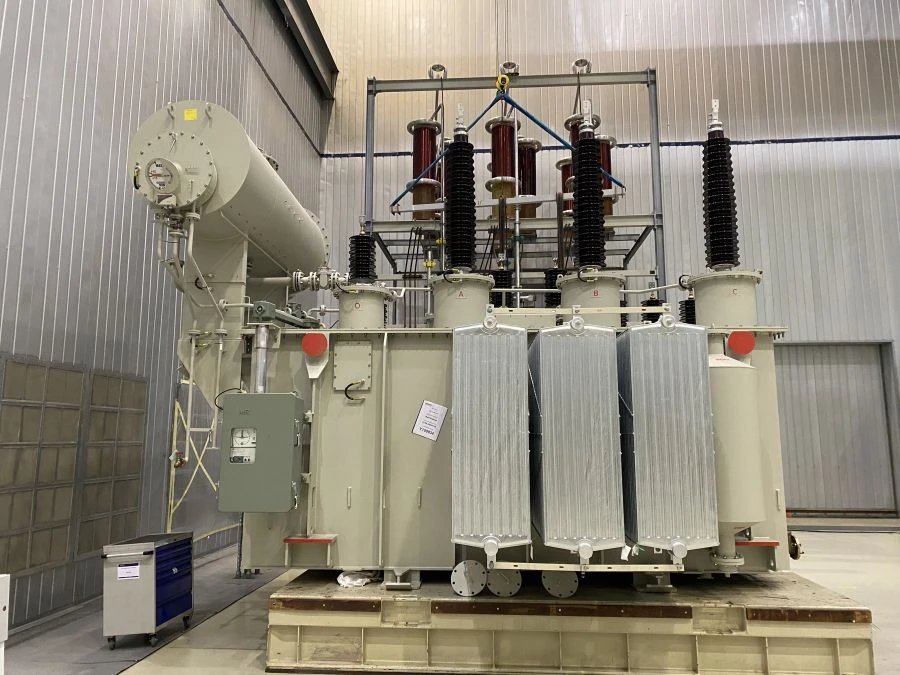

Three-phase oil-filled power transformer TDTN-10000/110
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Functional purpose: conversion by electromagnetic induction of one or more AC systems into one or more other AC systems.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 12965-85.
Rated power: 10000 kVA; rated current of HV winding: 50,2 A, rated current of CH winding: 150 A; Rated current of LV winding: 524,9 A; Rated voltage of HV winding: 115 kV,Rated voltage of SN winding: 38.5, Rated LV winding voltage: 11 kV; Number of phases: 3; Number of windings: high voltage windings, medium voltage windings; low voltage windings; Dielectric type: transformer oil.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 12965-85.
Rated power: 10000 kVA; rated current of HV winding: 50,2 A, rated current of CH winding: 150 A; Rated current of LV winding: 524,9 A; Rated voltage of HV winding: 115 kV,Rated voltage of SN winding: 38.5, Rated LV winding voltage: 11 kV; Number of phases: 3; Number of windings: high voltage windings, medium voltage windings; low voltage windings; Dielectric type: transformer oil.
Specifications
Length
5895 mm
Width
4458 mm
Height
4622 mm
Type of insulation
Oil
Possibility of regulation under voltage
Armoured glass
Transformer type
Power
Rated power
10000
Nominal voltage
110
