Available for Import

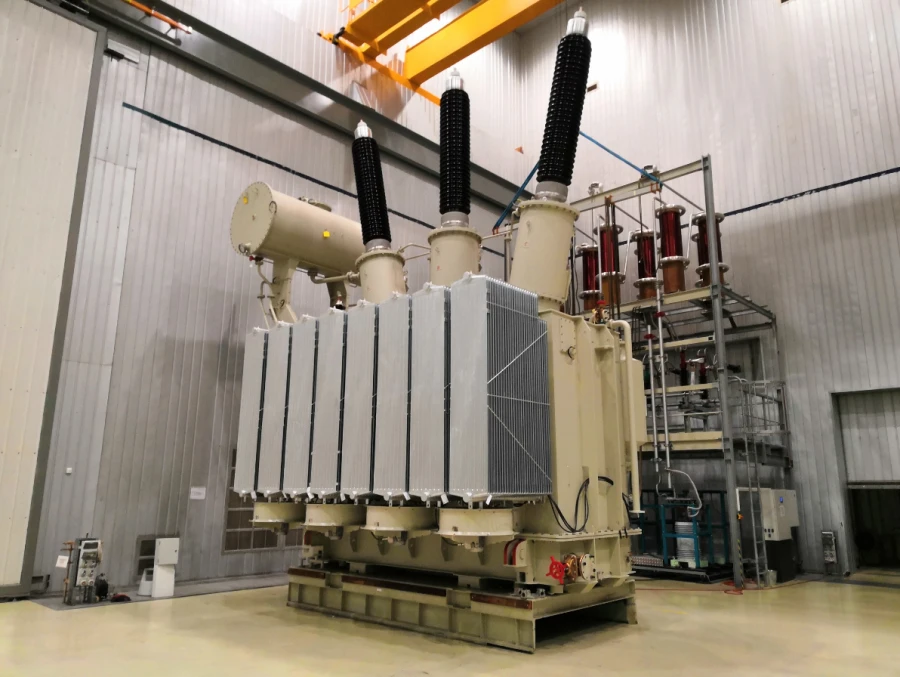

Three-phase oil-filled power transformer TRDN-63000/220
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Functional purpose: conversion by electromagnetic induction of one or more AC systems into one or more other AC systems.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 17544-85.
Rated power: 63000 kVA; Rated current of HV winding: 158,14 A, rated winding current; Rated current of LV winding: 909,33 A; Rated voltage of HV winding: 230 kV, rated voltage of LV winding: 20 kV; Number of phases: 3; Number of windings: high voltage winding, low voltage winding; Dielectric type: transformer oil.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 17544-85.
Rated power: 63000 kVA; Rated current of HV winding: 158,14 A, rated winding current; Rated current of LV winding: 909,33 A; Rated voltage of HV winding: 230 kV, rated voltage of LV winding: 20 kV; Number of phases: 3; Number of windings: high voltage winding, low voltage winding; Dielectric type: transformer oil.
Specifications
Length
7815 mm
Width
4636 mm
Height
8141 mm
Type of insulation
Oil
Possibility of regulation under voltage
Armoured glass
Transformer type
Power
Rated power
63000
Nominal voltage
220
