Available for Import

Thermal resistance converter ???? (????)-K1I

Temperature Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

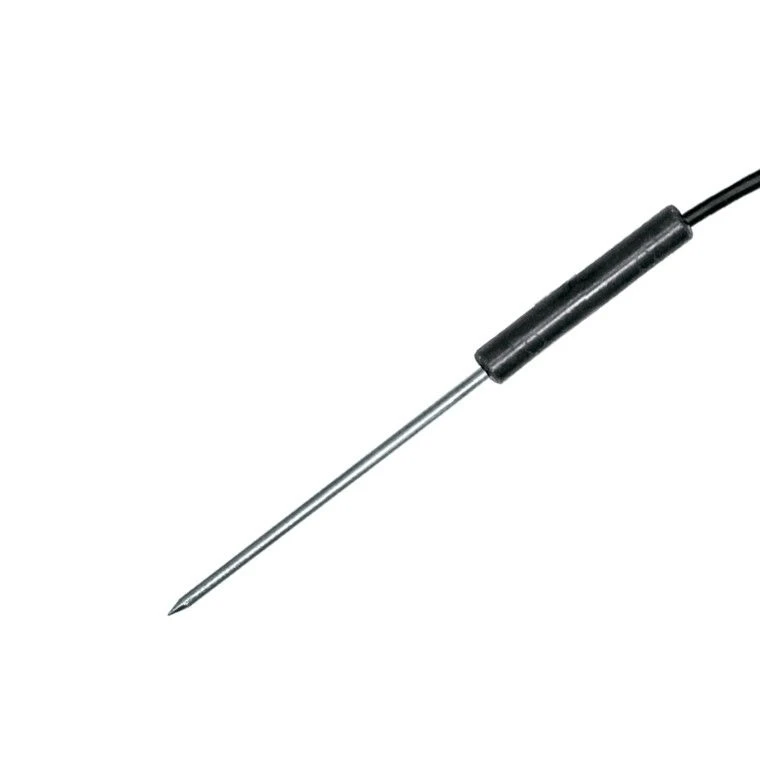

Resistance thermocouples with a sensitive element made of platinum TSPg or copper TSMg, design version K1I are intended for temperature control of liquid, gaseous and bulk media, non-aggressive to the material of protective armature, including temperature control inside food products, for example, meat products during their cooking and smoking. Thermal converters are designed for operation at ambient air temperature from minus 60 to plus 100 C (TSP) and from minus 50 to plus 100 C (TSM), relative humidity up to 100% at plus 40 C and atmospheric pressure from 84 to 106 kPa. Thermal converters are made in climatic version UHL 3.1 according to GOST15150-69. According to the degree of protection against dust and water penetration thermal converters correspond to IP 67 according to GOST 14254-96. According to the method of protection against electric shock thermal converters are made as a product of III class according to GOST 12.2.007.0-75. Do not expose thermal converters to shocks and falls.

Technical Specifications

Connection diagram	2-wire for Pt1000; 3-wire (Pt100, Pt1000, 50P, 100P) 3, 4-wire (50M, 100M)
Rated static characteristic (RSC)	50M; 100M; 50P; 100P; Pt100; Pt1000
Thermal converter type	M-copper; P-platinum
Connection cable length	6 m
Length of mounting part	200 mm
Diameter of the mounting part	4 mm
Temperature measurement range	-50...180 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
