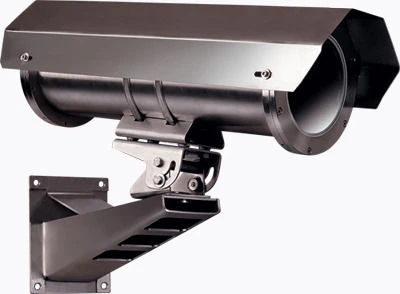

Thermal Jacket for Fixed and Varifocal Cameras: Protection Against Harsh Environments

Purpose: Protects the camera with fixed, zoom or zoom lens from unfavourable environmental influences in marine climate, chemical industries and other aggressive environments. Type: Special purpose thermal housings.Series: MARINE. Diameter of cables for connection of the thermal housing 6-10 mm.Weight of the complete thermal housing 12,8 kg.Maximum load on the bracket 60 kg with the reserve factor 2,6.Housing material: stainless steel 12?18?10?.Glass: special polished, without optical distortion.Fasteners: stainless steel.Material sealing gaskets TMKShch (heat-, frost-, acid-, alkaline-resistant rubber).Material cable glands: brass.Galvanic transformer isolation on the power supply, built-in power supply of the camera.
