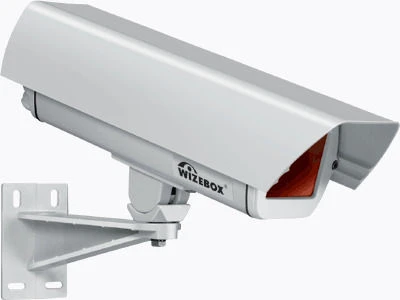

Thermal Jacket for Fixed Lens Thermal Cameras WIR26P-12V - Protects in Extreme Cold

The WIR26P-12V thermal housing protects a fixed lens thermal imager from adverse environmental influences in extremely cold climates.Type: Special purpose thermal housings.Series: INFRARED. Diameter of cables for connecting the thermal housing 4-8 mm.Weight of the complete thermal housing 3,2 kg. Maximum load on the bracket 50 kg with a safety factor of 2.6.Coating: powder paint, polyester, colour: light grey (RAL7035).Enclosure material: extruded aluminium; die-cast aluminium.Viewing window material: transparent in the area from 7 to 14 microns.Fasteners: stainless steel.Sealing gasket material: Armlene.

Material of cable glands: brass.Sight glass made of material transparent in the area from 7 to 14 microns.Double-sided luminescent coating ensures a transmission coefficient of 94%.
