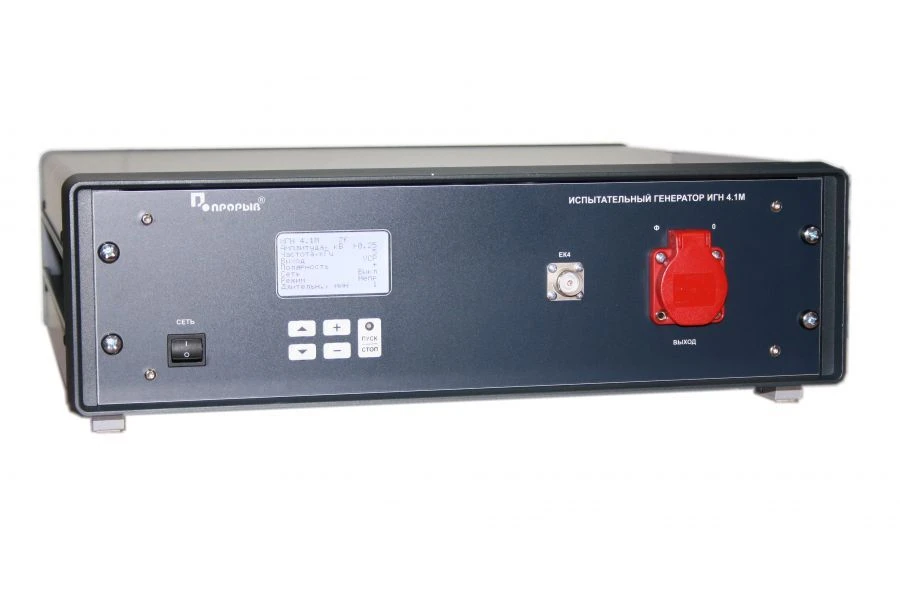

Test generator of nanosecond pulse interference IGN 4.1M

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Generator is designed to create normalised packs of nanosecond pulse interference (NIP) in the power supply network and signal circuits during testing of technical means (hereinafter - TS), which can be exposed to NIP according to GOST 30804.4.4-2013 p. 6.1, p. 6.3, GOST IEC 61000-4-4-2016.The generator is supplied with an inbuilt communication-decoupling device (CDD) designed for introduction of NIPs into single-phase AC power supply circuits with voltage 220V and current consumption up to 10A.

Specifications

Current amplitude range Iogr

5...80 A

Overall dimensions (W×H×H)

520x500x300

External management

Armoured glass

Pulse amplitude

4 kV

Pulse amplitude setting error

20 %

Maximum pulse output power

0.016 W
