Available for Import

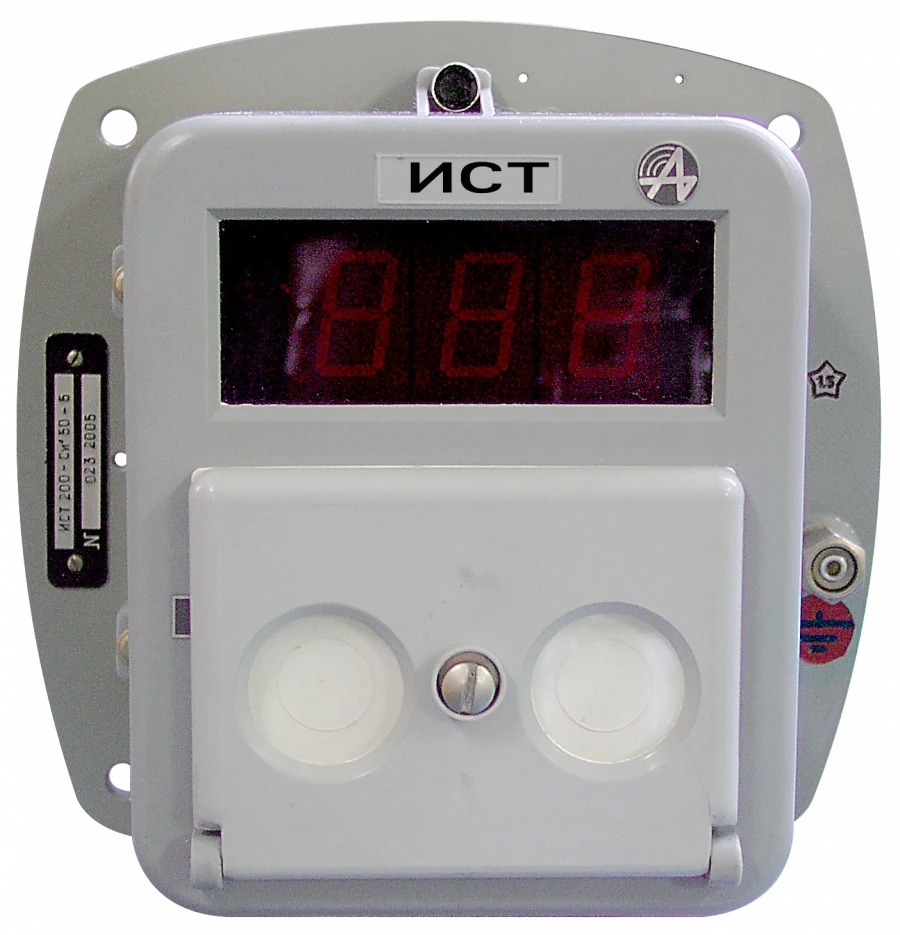

Temperature measuring and signalling device

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Temperature meter-signaliser is used for temperature measurement and control of various objects in control systems for continuous technological processes.

Specifications

Power supply voltage 220 V

Range of measured temperatures and settings -60...200 °C

Nominal static characteristic (NSH) of temperature sensor 50 M, 100 M, 50 P, 100 P

Absolute error tolerance under nominal climatic conditions 0.5 °C

Absolute error tolerance limit at extreme climatic conditions 1 °C

Number of measuring channels 1 pc

Maximum switching voltage (AC voltage) 253 V

Maximum switching voltage (DC voltage) 330 V

Maximum load current 1 A

Number of binary output signals 4 pc

Unified current signal, mA 0...5

Mode of operation continuous

Operating temperature range -45...50 °C

Overall dimensions 102x170x170 mm

Housing type Wall-mounted

Average time between failures, not less than 45000

Power consumption, max. 15

Supply voltage frequency SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
