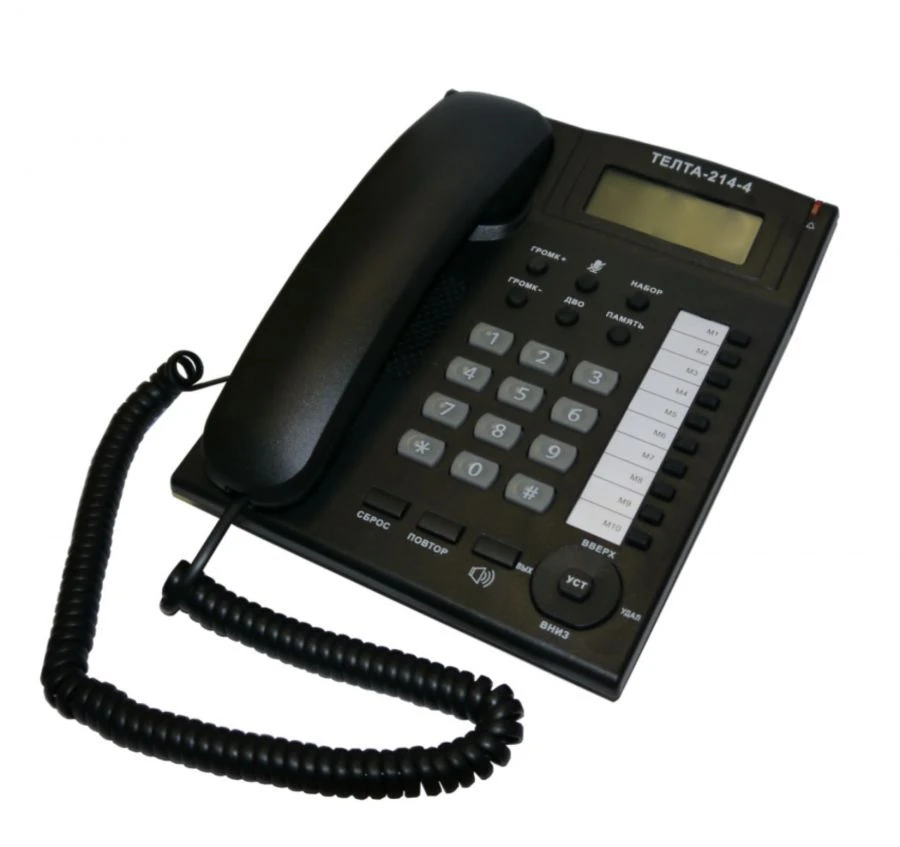

Telephone Device for PBX - Telta-214-4 with Reliable Performance

The telephone set (hereinafter referred to as TA) is designed to work with the PBX at the voltage of the station source of direct current 60+12/-6 V or 48+4/-2 V at the resistance of the power bridge equal to 2×(500±50) Ohm or 2×(400±40) Ohm, respectively. TA has a push-button dialer, alphanumeric liquid crystal display. TA has protection against impulse electrical overvoltages in AL and provides functioning at the arrival of the call signal amplitude up to 230V.

TA is available in a desktop and wall-mounted version. The TA has a removable support with legs that can be re-installed (for table or wall installation). TA weight in the package is not more than 0.8 kg.

Overall dimensions, max TA 217x170x100 mm.
