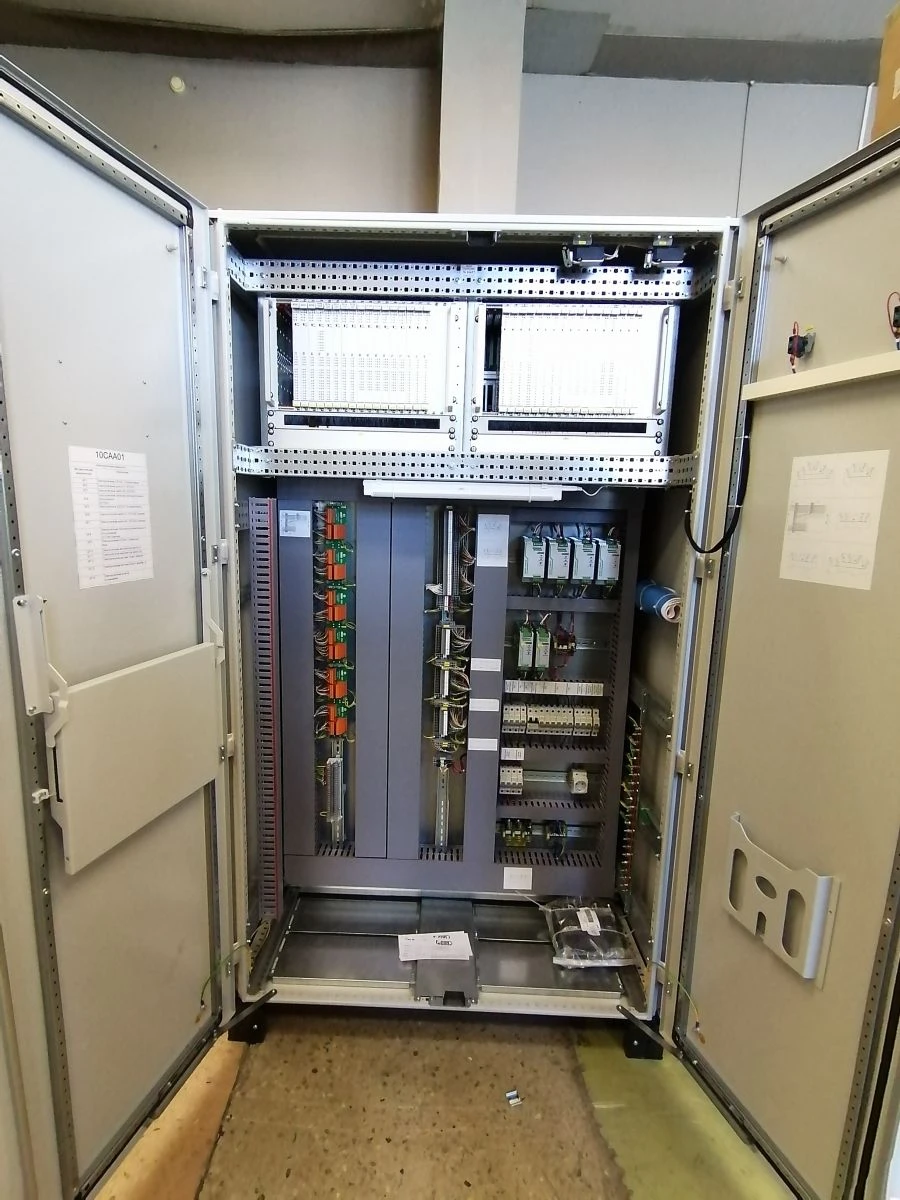

TEKON Control and Measurement System Cabinet SHKA-U-3000

Available for Import

TEKON SHKA-U-3000 Control and Measurement System Cabinet for Technical Systems

Low-Voltage Electrical Panels

Manufacturer: MODULE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The TEKON SHKA-U-3000 Control Cabinet delivers advanced measurement and control solutions engineered for large industrial enterprises and nuclear facilities. Built from premium materials with a practical design, it ensures stable performance in demanding environments.

Combining precision with exceptional durability, this system offers outstanding long-term investment value. Perfect for organizations seeking reliable automation control that withstands intensive daily operations and provides consistent, dependable performance.

Specifications

Type

cabinets of complete automatics SHKA-U-3000

Climatic version

UHL4 and UHL1 according to GOST 15150-69

Temperature class

- Ambient air temperature - without ventilation: from + 1 to + 45 C, with ventilation: from + 1 to + 55 C

Degree of protection

IP54 or IP20

Housing material

made in the form of a metal frame made of a specialized profile with collapsible side walls, roof, with or without plinth, front and rear doors

Material of manufacture

The front door can be made of solid metal, metal with a viewing window or solid glass.

Color

RAL 7035

Explosion protection

explosion protection level "Ga" according to GOST 31610.0-2014 (IEC 60079-0:2011) and belong to subgroup IIC according to GOST 31610.0-2014 (IEC 60079-0:2011)

Height

2000 mm

Width

800...1200 mm

Type of explosion protection

"i" (intrinsically safe electrical circuit) with explosion protection level "ia" according to GOST 31610.11-2014 (IEC 60079-11:2011)

Modules

Armoured glass

Material

Metal case

Current capacity

2.5.1.4 Emission of harmonic components of the consumed current from the AC electrical network must meet the norms of emission of harmonic components of the consumed current, established in GOST 30804.3.2-2013 (section 7 class A)

Size; mm

800-1200/2000/400-800 mm

Mark

TECON

Equipment

Multifunctional controller MFK3000, TCC Ex series intrinsic protection barriers, Uninterruptible power supplies, Cabinets

Assignment

2.3.1 The SHKA shall provide the following main functions: ? constant round-the-clock operation in all modes of normal operation; ? control of technological parameters and signaling of their deviations; ? remote control of equipment

Length

2000 mm

Degree of protection against external influences

2.7.1Nominal operating values of mechanical external influencing factors for the SHKA shall comply with GOST 17516.1-90 for mechanical design group M13 or M 6 (to be specified in the ToR)

By explosion protection

Armoured glass

Frequency

SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
