Tank wagons for argon, oxygen, nitrogen, model 15-558C-04

Rail Tank Wagons

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

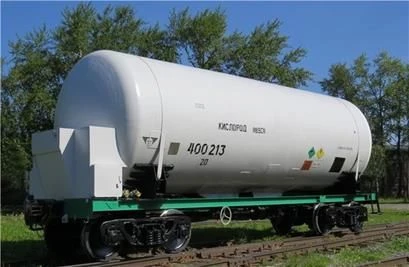

The tank wagon model 15-558C-04 is designed for carriage and storage of liquefied argon, oxygen, nitrogen, transported in general purpose railway trains.

Technical Specifications

Type of product according to PP RF 616	Tank cars
Designation	15-558?-04
Assignment	for the carriage and storage of liquid argon, nitrogen, oxygen
Name	?????-????????
Height	(from rail head level): - maximum (under tare) not more than 4550mm, - to the coupling axis (under tare) from 1040 to 1080mm
Tare weight	35.19 t
Management of work operations	manual
Liquid gas output rate	- by pressurising the vessel with an evaporator up to 580l/min; - by pressurising the vessel with an external source up to 800l/min.
Filling method	via pump or overpressure drain/fill communications
Design static load	(from wheelset to rails maximum) 230 (23.5) kn (tf)
Product losses from evaporation	(when stored with pressure in the isolation cavity not exceeding 1.33x10-2pa (1x10-4) mmHg, reduced to temperature: t=306k (33os) and p=0;1 mPa (760mmHg)): not more than - argon 0.27, - oxygen 0.24, - nitrogen 0.34 % per day.
Filling rate	- argon 1.17, - oxygen 1.03, - nitrogen 0.72t/m3
Assigned service life	28 years
Minimum radius of the circular curve of a single tanker passage	60?
Container shell material	Steel grade 092g2s category 14
Weight of product to be poured	not more than - argon 57.6, - oxygen 50.7, - nitrogen 35.5t
Design speed	120km/h.
Length	a) along the coupling axes of couplers 12020mm b) along the end beams of the frame 10800mm c) tank 10314±12mm
Outer diameter of the tank	3216±16mm
Pressure in the isolation space	At operation (in warm state) 1.33 (1x10-3) pa (mmHg.)
Tank capacity	49.1
Type of thermal insulation	Shield-powder-vacuum
Base	- tank car 7800±5mm, - trolley 1850mm
Width	- tank not more than 3246mm, - on frame side beams 2550±5mm, - on frame kingpin beams 2550±5mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
