Available for Import

Tank wagon special 15-5106 for LNG and ethylene 40.45T

Rail Tank Wagons

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

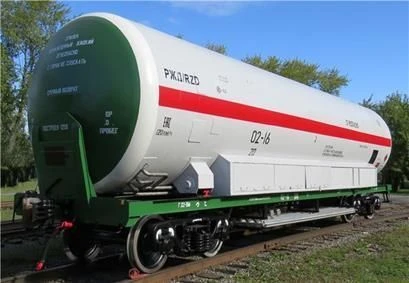

The tank wagon model 15-5106 has an enlarged boiler and is designed for the carriage and storage of liquefied natural gas (LNG) and ethylene, transported in general purpose railway trains.

Technical Specifications

Type of product according to PP RF 616	Tank cars
Name	?????-????????
Assignment	for spg and ethylene
Designation	15-5106
Tare weight	40.45?
Base	- capacity 10000mm; - trolley 1850mm
Tank capacity	65.4?3
Drainage-free storage time	(at pressure rise from 0.05 mpa to 0.5 mpa) 42 (85)days
Pressure in the isolation space	during operation (in warm condition), 1.33 (1x10-2) pa (mmHg)
Vessel pressure	(working) 0.5 (5.1) mpa (kgf/cm2); (test without taking into account vacuum in the heat-insulating cavity) 1.1 (11.22) mpa (kgf/cm2); (test in the presence of vacuum in the heat-insulating cavity) 1.0 (10.2) mpa (kgf/cm2)
Length	- along the coupling axes of couplers 15090mm; - along the frame end beams 13870mm; - capacity 14144mm
Permissible vessel wall temperature	-196 to +70°c
Design speed	120km/h.
Weight of product to be poured	23.56t, (31.66t)
Product losses from evaporation	(at stationary storage reduced to temperature: t=306k (33os) and p=0.1 mpa (760mmHg)) 0.417 (0.227) % per day
Design static load	(from wheelset to rails maximum) 230.3 (23.5) kn (tf)
Cart	biaxial 18-100, type 2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
