Tank wagon for transportation of technical sulphuric acid model 15-5200

Rail Tank Wagons

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

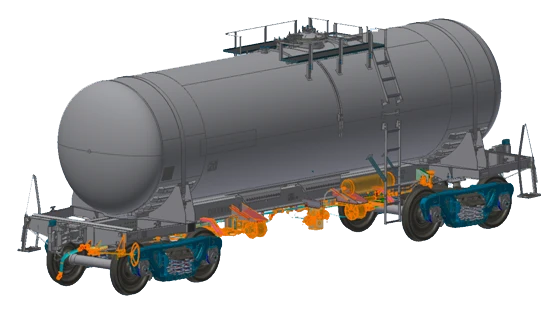

Four-axle tank wagon (hereinafter referred to as tank wagon) is designed for transportation of technical sulphuric acid according to GOST 2184, with mass fraction of monohydrate from 92,5% to 99% on the railways of 1520 mm gauge of the Russian Federation, CIS countries, Georgia. Latvian Republic, Republic of Lithuania, Republic of Estonia.

The tank is manufactured in UHL category 1 according to GOST 15150 with ensuring operational reliability at lower operating and limit temperature values of 60°?.

The advantage of the tanker in comparison with its analogue is increased load capacity up to 77 tonnes, increased boiler volume up to 44.1 m3, which is achieved by using bogies with axle load of 25 tonnes.

Specifications

Type of product according to PP RF 616 Tank cars

Assignment For the carriage of technical sulphuric acid

Payload 77 t

Cotter diameter internal nom. 2400 mm

Tare weight 22.7 t

Length along the coupling axes of couplers 12020 mm

Boiler volume full 44.1

Useful boiler volume 42.4

Length of boiler 10174 mm

Base of tank 7800 mm

Trolley base (model 18-194-1) 1850 mm

Height of coupler axis from rail head level 1040...1080 mm

Design speed 120

Dimension according to GOST 9238 02-VM

Maximum working pressure in the boiler (at product discharge), MPa (kgf/cm²) 0,25 (2,55)

Trial pressure in the boiler during hydraulic tests, MPa (kgf/cm²) 0.7560±0,0378 (7,7100±0,3855)*

Design pressure, MPa (kgf/cm2) 0,598 (6,1)*

Overpressure in the boiler according to safety valve adjustment, MPa (kgf/cm²) 0,255-0,294 (2,6-3,0)

External overpressure according to inlet valve adjustment, MPa (kgf/cm²) minus 0.01 +0.01 (0.1 +0.1)

Model of two-axle cart 18-194-1, type 3 GOST 9246

Type of coupling CA-3

Number of ladders: -external; -internal. -outside - 2, inside - none. pc

Loading method closed top

Discharge method upper compartment by squeezing or siphoning

SMGS tank code L4DN

Length along frame end beams 10884 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
