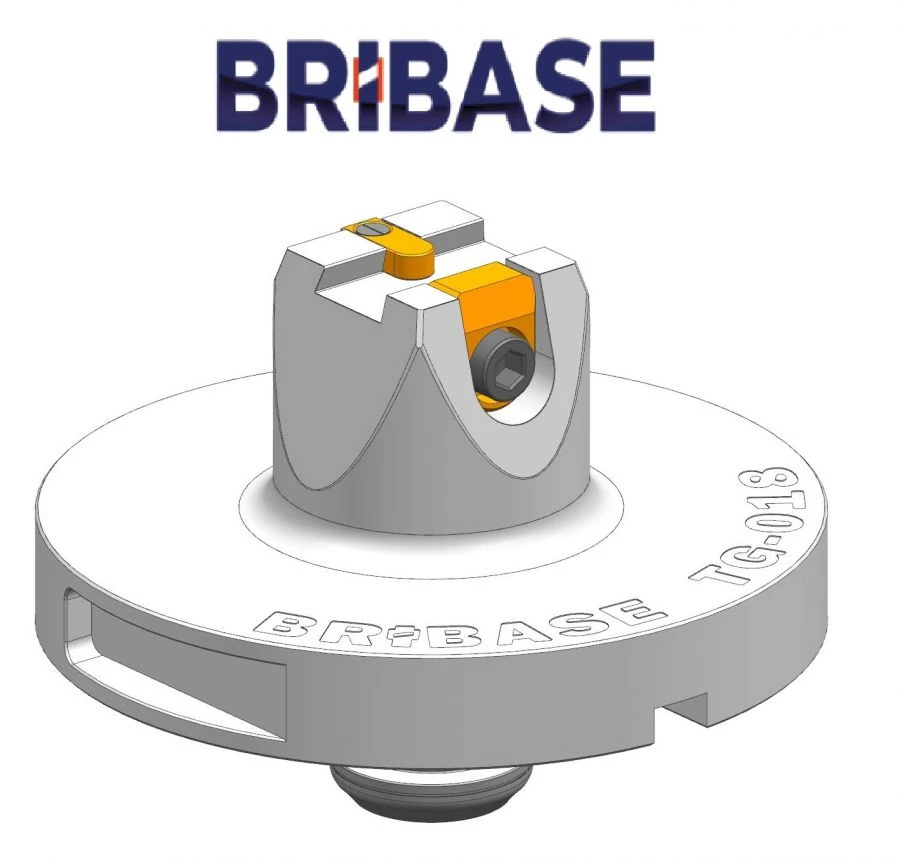

TAIL GRIP Quick Release Device for Workpiece Clamping (TG-018)
Bulk pricing available
FOB, CIF & EXW terms available
Description
The TAIL GRIP is a quick-release device designed to clamp the workpiece by the allowance in the range from 2 mm to 4 mm using a dovetail-type technological element. The fixture is installed in the zero reference devices and clamped in them with the help of a setting pin with repeatability of setting in the range from 0 to 0.005 mm. The overall height of the fixture is 104.5 mm. The total diameter of the fixture is 140 mm.
Specifications
Share your requirements for a quick response!
Delivery & Payment
Shipping Terms
Delivery Time
Payment Methods
