Meter of insulation parameters "PARMA TENSOR-2"

Electrical Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

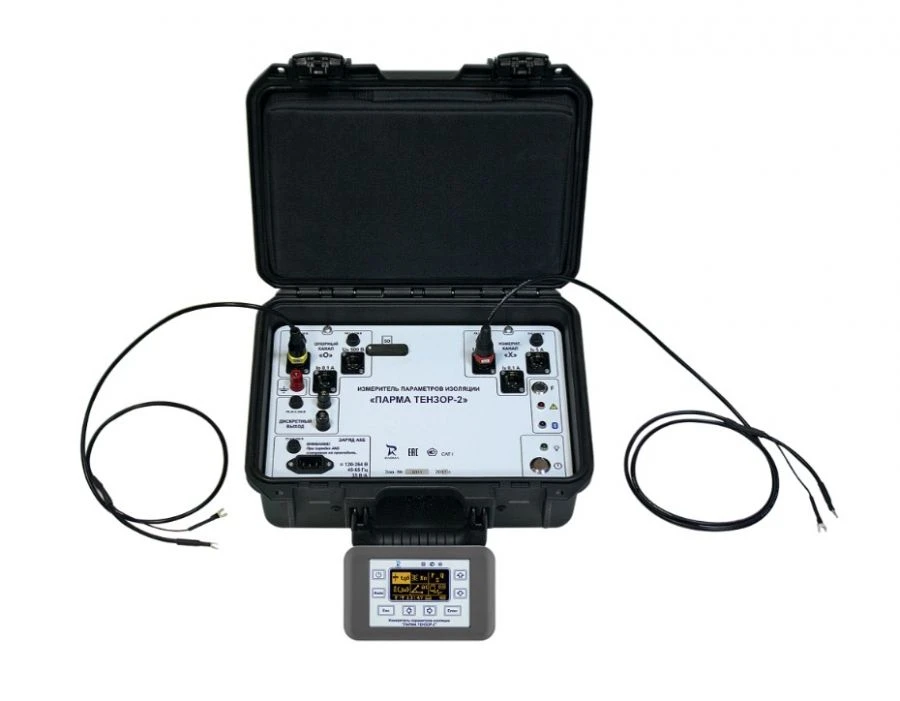

The insulation parameter meter "PARMA TENSOR-2" is designed for automated measurements of capacitance and dissipation factor of high-voltage insulation of capacitors, bushings, transformers, insulators using an external high-voltage capacitor; measurements of phase shift angle between signals applied to the device inputs; measurements of AC frequency of industrial network; determination of transformation ratio, no-load and short-circuit losses; calculation of complex resistance, Distinctive features of the meter: optional work can be carried out using a PC; safe control of the device from the remote control (at a distance of up to 10 m); complete in a compact shockproof case, weighing no more than 13 kg

Specifications

Defense Relay protection and automation device

Equipment Measuring unit with built-in battery, Power cable, Connecting cables, Fusible plugs (set), SD memory card, USB service drive, Remote control (with rechargeable batteries), Power supply unit with miniUSB cable, Bag, Documentation

Performance 5

Number of analog input channels 2 channels (have independent commutable inputs for voltage and/or current connections)

Measuring unit power supply mode Built-in rechargeable battery, with the possibility of charging from 220V network

Remote control power supply mode Power supply from galvanic cells or accumulators

Measurement of alternating electric current voltage of industrial frequency 1...500 V

Phase angle measurement 0...360

AC frequency measurement 48...52

Measurement of electrical capacitance from 2 to 9900000 picofarads

Measurement of loss angle tangent 0.0002 to 1

Permissible values of alternating current strength of industrial frequency in the circuit of the reference capacitor 0.00002 to 0.1 A A

Permissible values of alternating current power of industrial frequency 0.00002 to 5 A A

Mark Meter of insulation parameters "PARMA TENSOR-2"

Designation Meter of insulation parameters "PARMA TENSOR-2"

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
