Switch of wells multi-way PSM

Functional purpose:
multi-pass well switch is designed for automatic and manual setting of wells for metering in automated group metering installations of "Sputnik", "OZNA - MASSOMER", "OZNA - Impulse" types.

brief product description:

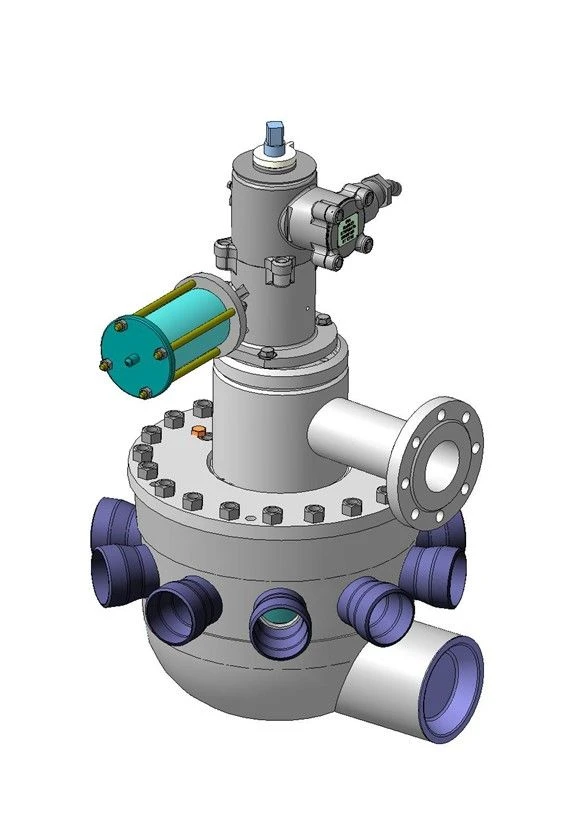

The multiway well switch consists of body with spigots, cover with measuring spigot, tee, shaft, position sensor, position indicator, movable carriage and piston actuator with ratchet mechanism.
main consumer features:
-Alloying stainless steel working surface of the body several times increase durability in aggressive environments. No flushing of the PSM housing.
-The use of floating (self-aligning) mechanism, accurately adjusts the position of the carriage relative to the guide grooves of the body without the use of adjusting washers and thrusters.
-The rigid fixation of the carriage against rotation around its axis reduces wear on the guide grooves of the PSM housing, and if the carriage is ... .
