KR-21 - Passive control panel for GPI signals (contact pair closure). 2 latching buttons, 2 outputs, without PSU.

Standalone Communication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

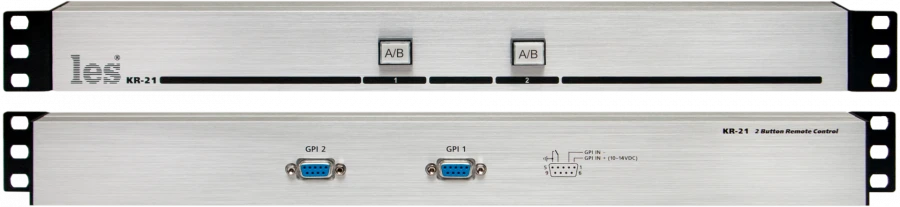

The panel is designed to control external devices using GPI signals. Located on the front panel, two latching buttons close a pair of pins on the DB-9F output connectors. LED button illumination can be used to indicate the status of the device being controlled. In the KR-21P model, the buttons are equipped with protective covers. The panel has side mounting angles for installation in a telecoms rack. The warranty period is 24 months.

Technical Specifications

Number of GPI inputs	2 pc
Number of GPI outputs	2 pc
GPI signal type	contact welding
Maximum permissible voltage on the contact pair	28 V
Maximum current of the contact pair to be closed	0.1 A
Number of GPI connectors	2 pc
GPI connector type	DB-9F
Number of control buttons	2 pc
Protective covers for control buttons, for model KR-21	no
Protective covers on control buttons, for model KR-21P	Armoured glass
LED backlight supply voltage	10...14 V
LED backlight consumption current, typical	0.02 A
Operating temperature range	5...40 °C
Overall dimensions (W - H - D)	483...44 mm
Weight	0.66 kg
