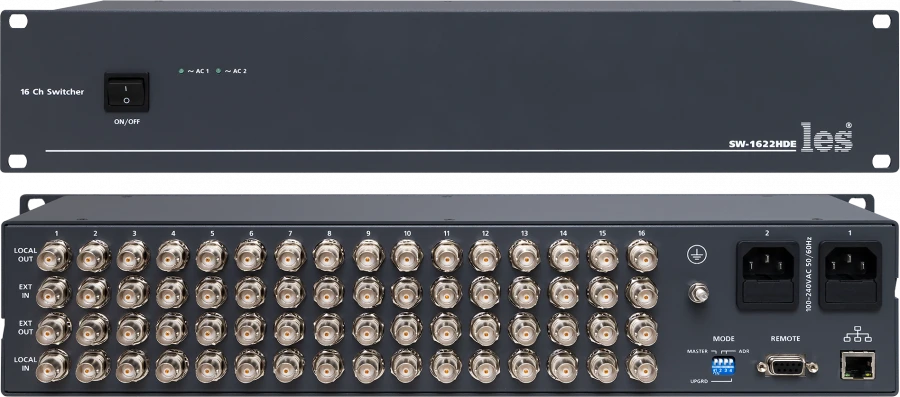

SW-1622HDE - 16 channel switcher for CVBS, 3G/HD/SD-SDI and DVB-ASI signals.

Standalone Communication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The relay switch is designed to provide controlled bypass of 16 independent paths for signals up to 5 GHz (PAL, SECAM, 3G/HD/SD-SDI, DVB-ASI). It can manage a group of 1 to 4 similar (SW-1622HDE) slave switches. The slaves are connected to the master via RS-485 interface. Setting the "Master" or "Slave" mode is done by means of a DIP-switch. The master switch has a non-volatile memory to restore the configuration after power off. Control is performed via Ethernet or external GPI signal. The switch has 2 power supplies.

Technical Specifications

Number of inputs per channel	2 pc
Number of outputs per channel	2 pc
Switched Signal Standard	CVBS, 3G/HD/SD-SDI, DVB-ASI
Transmission coefficient up to 150 MHz	0...0.05
Transmission coefficient from 150 MHz to 3 GHz	0.05...2
Transient attenuation at 600 MHz, not less than	60
Time of commutation recovery in case of power failure, not more than	1
Switching time (duration of contact bounce), max.	20
Connector type	BNC
Supported Ethernet standard	100 Base-TX/10 Base-T
Ethernet connector type	RJ-45
Number of GPI signal inputs	1 pc
Number of GPI signal outputs	1 pc
Connector type for GPI signals	DB9 female
GPI input/output signal type	level
Ethernet control	Web interface, proprietary protocol
Control from third-party equipment	GPI signals
Power supply voltage	100...240 V
Power consumption, max.	10 W
Number of power supplies	2 pc
Operating temperature range	5...40 °C
Overall dimensions (W - H - D)	483...88 mm
Weight	4 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
