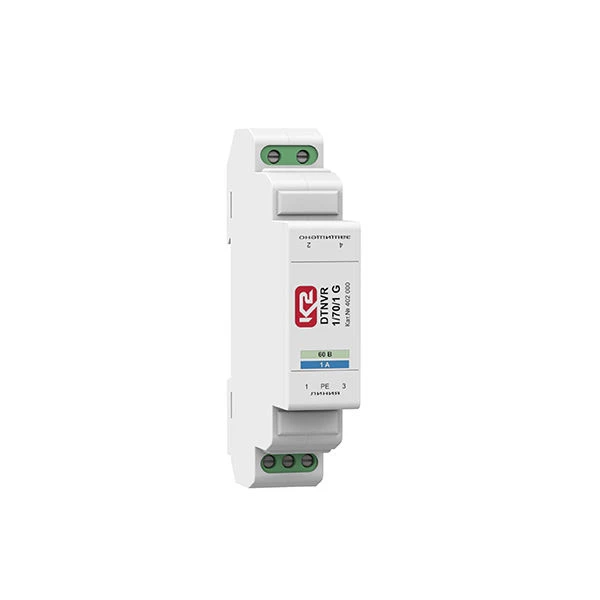

Surge Protection Device DTNVR 1/70/1 G (LT) for Industrial Automation Safety

UZIP series DTNVR */**/1 G (LT), TU 3428-002-79740390-2007 are designed to protect the equipment of distributed networks of industrial automation equipment (ACS TP, ASCUE, etc.), digital data transmission interfaces, digital data transmission interfaces, etc., etc..), digital data transmission interfaces, signal lines of control and measurement systems, where additional resistance is inadmissible, from impulse overvoltages (lightning protection, protection against electrostatic discharges, etc.) within 0B - 2 lightning protection zones in accordance with GOST R IEC 62305-1-2010. Rated current IL = 1 A. Number of protected conductor pairs 1, connection by means of screw terminals 4,00 mm.

Capable of passing rated discharge current In(8/20) up to 20 kA. Data transfer rate up to 10 Mbit/s.
