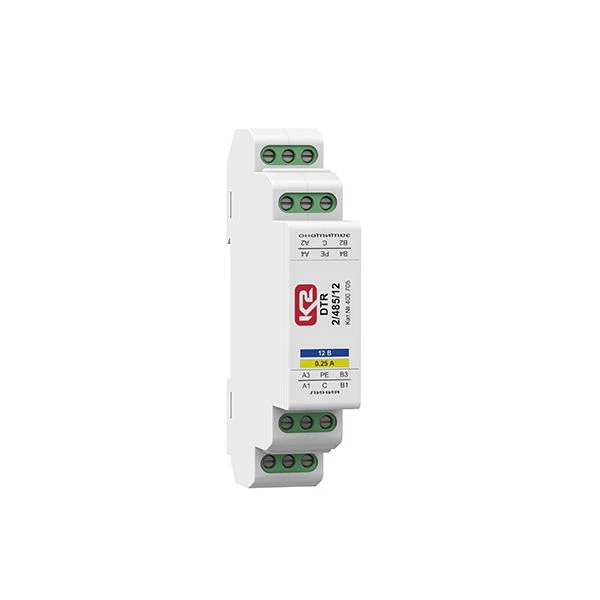

Surge Protection Device for RS-485 Interface DTR 2/485/12 (LT) Cat. No. 400 709

Available for Import

Surge Protection Device for RS-485 Interface DTR 2/485/12 (LT) - Protect Your Data Lines

Surge Protection Devices

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

USIP series DTR */485/**, TU 3428-002-79740390-2007 are designed to protect RS-485 serial interface lines with data transmission rate up to 10 Mbit/s from impulse overvoltages (lightning protection, protection from electrostatic discharges, etc.) within 0V - 1 zone of lightning protection in accordance with GOST R IEC 62305-1-2010. Number of protected conductor pairs 2, connection by means of screw terminals 4,00 mm. Capable of passing the rated discharge current In (8/20)= 20kA. Data transfer rate up to 10 Mbit/s.

Specifications

maximum operating current (max.

0.25 A

Operating voltage

B1/B8 2100/900 MHz V

Dimensions

Weight

0.07 kg

Number of channels

2 pcs
