Available for Import

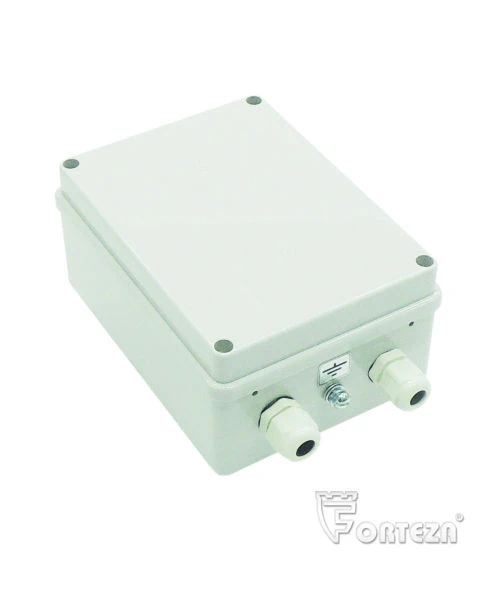

Surge Protection Block for Alarm Systems BGr-6.1 - Protect Your Devices from Overvoltage

Surge Protection Devices

Manufacturer: OKHRANNAIA TEKHNIKA LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Lightning protection unit "BGr-4" Lightning protection unit "BGr-6"

Description

They are used to protect the detector circuits or other circuits of the alarm system from short-term overvoltage caused by inductions in long lines, such as lightning discharge.BGr-6.1 provides protection of six signal circuits or power supply circuits (up to 2 A), as well as additional transit of four more circuits. The unit is designed to protect six DC or AC circuits with a voltage of up to 30V. Can replace the distribution box. It is possible to replace the board with a replaceable one.

Specifications

Rated limiting voltage

30...46 V

Dimensions

190x120x96 mm

Weight

0.4 kg

Degree of enclosure protection

IP-55

Number of circuits

6 pcs

Maximum pulse current

10000 A

Protection tripping time, not more

Operating temperature range

-55...65 °C
