Diode Module DIM-XR 12-24DC/10x2/20x1 for Power Source Isolation and Load Management

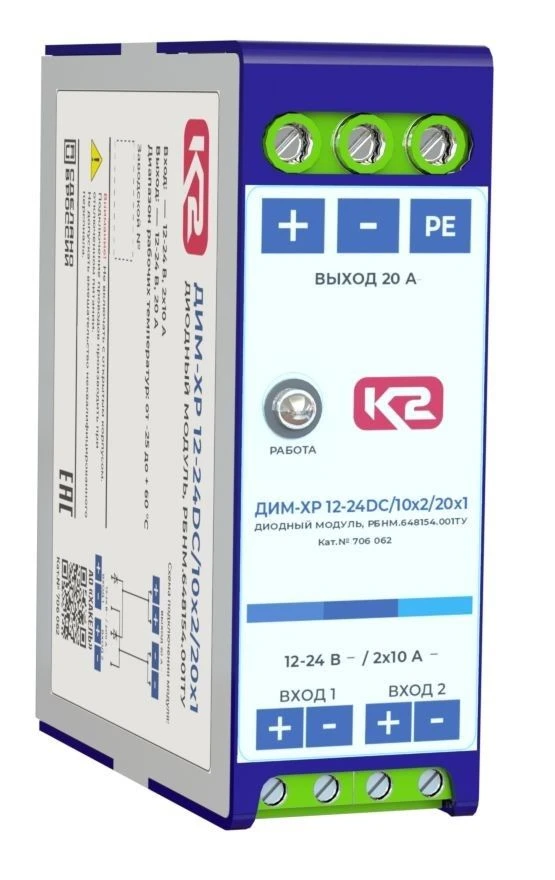

Diode module DIM-XR 12-24DC/10x2/20x1, RBNM.648154.003?? is designed for decoupling of two redundant power supplies operating on a common load. DIM-XR 12-24DC/10x2/20x1 is used in DC circuits with nominal voltage from 12 to 24 V.

The device is a diode assembly, switched on according to the scheme "or" with a common cathode, and is mounted on a DIN rail. The redundant power supplies are isolated by the positive supply pole. The negative supply pole is directly transmitted to the device output.

The input and output circuits of the module are equipped with surge protection. On the front panel of the module there is an LED indication of the presence of output voltage.
