Strip Filter PPF-1602/R3K for Enhanced Antenna-Feeder Performance

Broadcast Equipment Parts

Manufacturer: Radio Communication Laboratory LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

2.1Bandpass filter PPF-1602/R3K KD ALVR.468874.001 is designed for use in the antenna-feeder path of receiving and transmitting devices and locomotive radios with impedance 50 Ohm, operating in the frequency band 151,7 - 156,0 MHz. Contributes to increasing the selectivity of receivers and reducing the influence of out-of-band interference. The use of filter allows you to get rid of the effect of blocking high-frequency signals from nearby radio transmitters and reduce the sensitivity of the receiver, as well as eliminate the occurrence of intermodulation losses.

Installing a filter in the transmitter circuit reduces the level of out-of-band radiation of the transmitting path and prevents the appearance of intermodulation products from external sources of radiation.

Specifications

Type

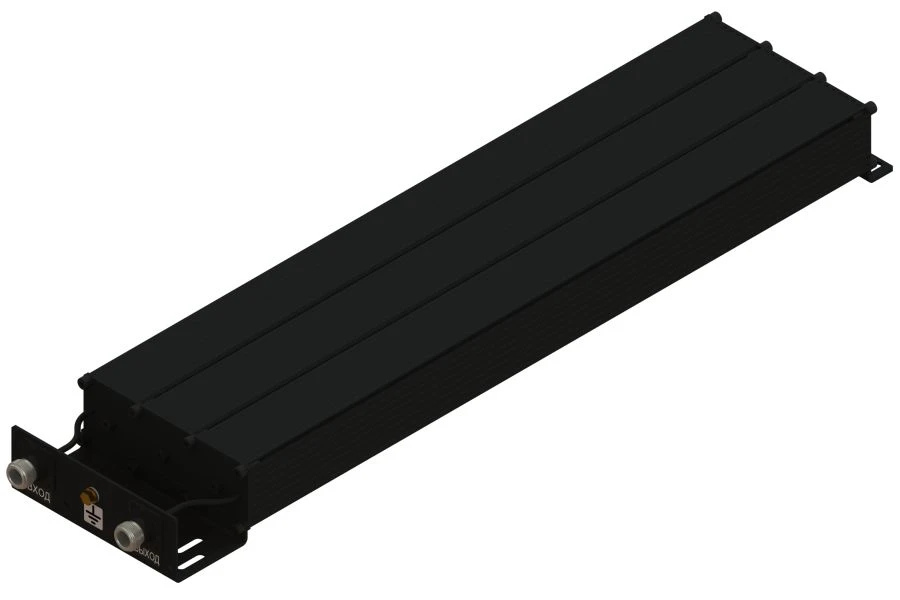

The design of the filter is three coaxial resonators with a square cross-section of 2 inches in series, as well as input and output connectors.

Equipment

Filter, passport, container.

Wave impedance

SBVVBG ohm

VSWR

Not more than 1,3 dB

Direct bandwidth loss

Not more than 1,5 dB

Weight

2.1 kg

Maximum input power (continuous)

100 W

Degree of protection in operating position

According to the degree of protection of the shell the filter meets the requirements of IP54 code according to GOST 14254-2015.

Operating temperature

-40...54 °C

Frequency range

151.7...154

Bandwidth

0.5

Signal suppression at 3,5 MHz detuning from fc, dB, not less

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
