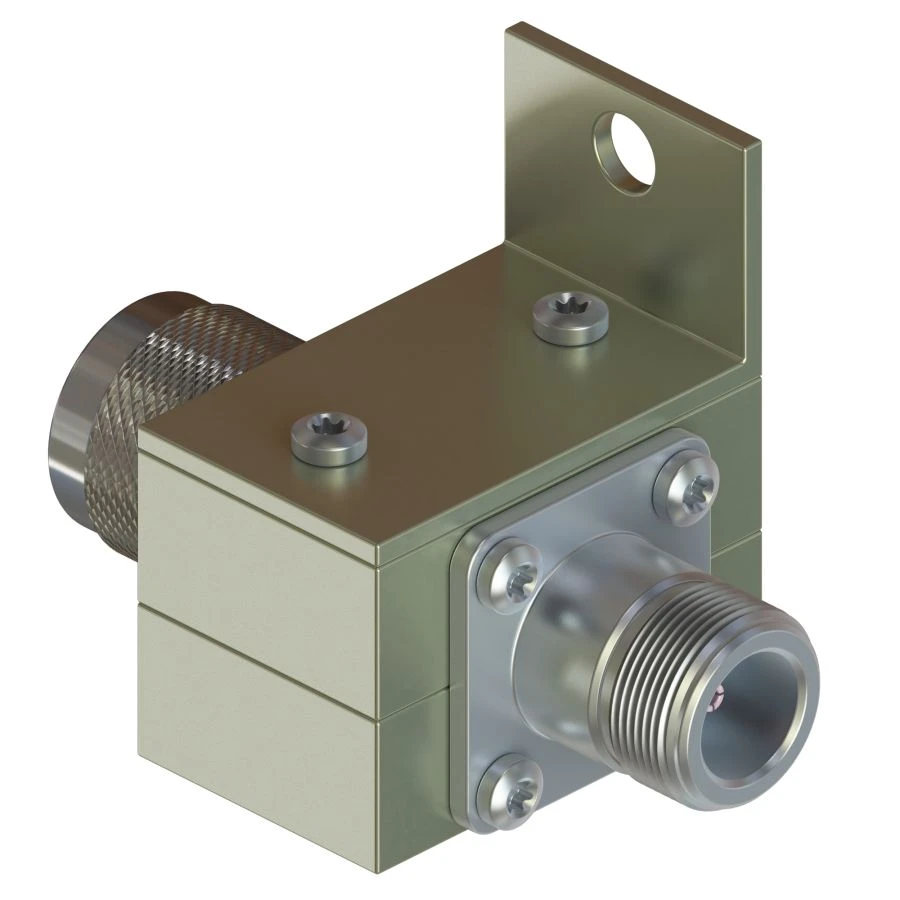

Lightning Protection Device GR-50/1000 for Radio Communication Systems

Broadcast Equipment Parts

Manufacturer: Radio Communication Laboratory LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Lightning protection device GR-1/50 Lightning protection device GR-2.130P

Description

The lightning protection device GR-50/1000 is designed for protection against permanent and impulse overvoltages on the antenna input of receiving radio-electronic equipment of stationary radio communication systems operating in the frequency range of 50-1000 MHz. GR-50/1000 provides DC isolation between the central conductors of connectors.

Specifications

Type

GR-50/1000 provides DC isolation between the centre conductors of the connectors. GR-50/1000 is intended for indoor installation at the point where the antenna feeder enters the building. The GR-50/1000 design includes an N-type antenna connector for the

Equipment

Lightning protection, passport, accessories, packaging

Wave impedance

SBVVBG ohm

Operating frequency range

50...1000

Weight

0.08 kg

Operating voltage (DC)

Not more than 230 V

Breakdown voltage constant/pulse voltage

230 V/600 V

Operating temperature

-20...60 °C

Weakening of the useful signal

Not more than 0,5 dB

VSWR

In the bands: 50-650 MHz, not more than 1.1 dB; 650-1000 MHz, not more than 1.2 dB

Maximum continuous power supply

In the bands: 50-220 MHz not more than 375 W; 220-700 MHz not more than 125 W; 700-1000 MHz not more than 50 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
