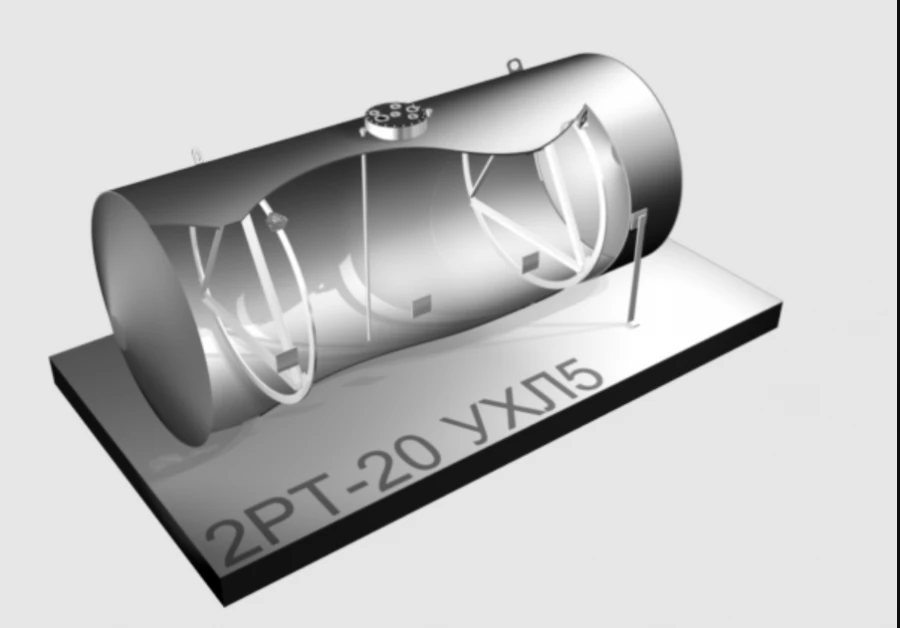

Steel Horizontal Cylindrical Storage Tank Type 2RT - 20 for Efficient Storage

Nominal capacity (m3) 20
Number of chambers1
Overpressure in the inner chamber MPa(kgS/cm2)0.02
Number of necks in the tank (pcs)1
Number of wells (pcs)1
Chamber bottom thickness (mm)5
Thickness of inner chamber shells (mm)5
Dimensions (length, diameter (mm))4600, 2450
Weight not more than (kg)2000
Service life not less than (years)10
