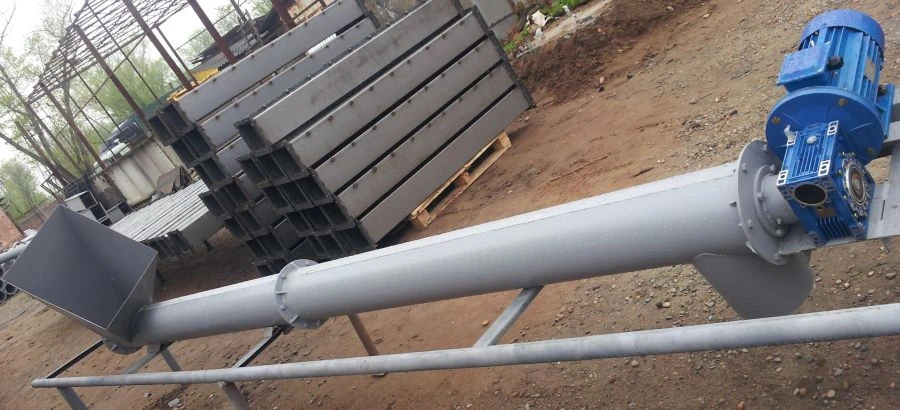

Stationary screw conveyor model UHT modification UHT - 250-U (in a pipe)

Conveyor screw stationary is designed for transporting grain and products of its processing. The conveyor provides moving of cargo in horizontal position and under inclination (not more than 45 degrees).
The components of the conveyor are the initial (loading) link, the final (unloading) link with the installed drive, the middle link (depending on the length of the conveyor different number), the level sensor.
The principle of operation of the conveyor is as follows: the product getting into the pipe with a rotating screw, under the influence of pressure forces on it makes a movement along the axis of the pipe. The load cannot rotate together with the screw because the friction force against the pipe and its own weight prevents it.
The conveyor is loaded through an opening in the pipe.
The product is discharged from the conveyor through the discharge window located at the bottom of the pipe. There can be several discharge windows and all of them must be regulated by gate valves.
