Stationary mobile jacking machine UDSP120DA
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
The stationary-mobile unit is a symbiosis of stationary and mobile jacks and is an optimal solution when placing jacks in cramped conditions. This model is ideal in those cases when it is necessary to service a large number of rolling stock with different lengths of platforms.

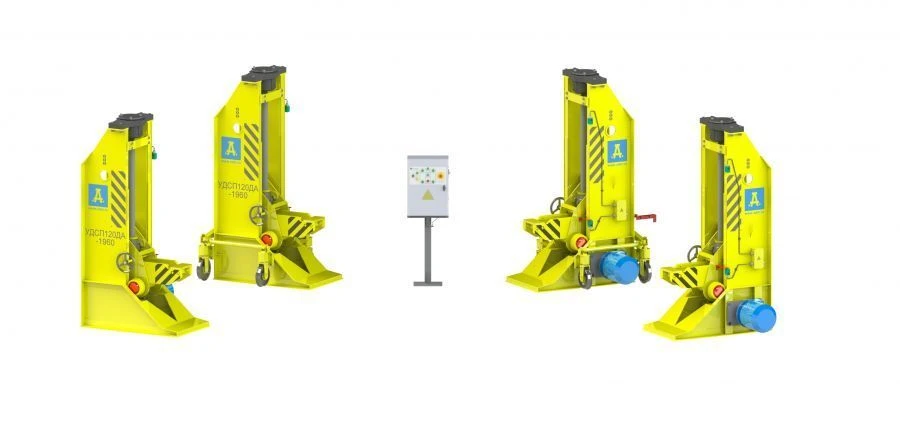

Stationary-mobile jacking unit with gearmotor UDSP120DA with lifting height 1960mm.
Each unit shall consist of the following components:
- four jacks, each with a lifting capacity of 30t, with two jacks being stationary and two jacks being mobile;
- control panel, connected to the jacks with electrical cables.
Technical Specifications
| Payload | 120 t |
|---|---|
| Distance from track axis to load beams | 1310 mm |
| Maximum height of load beam platforms | 1960 mm |
| Distance between wheels (track) of the mobile jack | 800 mm |
| Drive power of each jack | 5 kW |
| Motor type | AIR132M6 |
| Weight of the control panel | 51 kg |
| Unit weight (without oil in gearboxes) | 7040 kg |
| Type of drive for jacks | Electric motor and reducer two-stage cylindrical worm gearboxes |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
