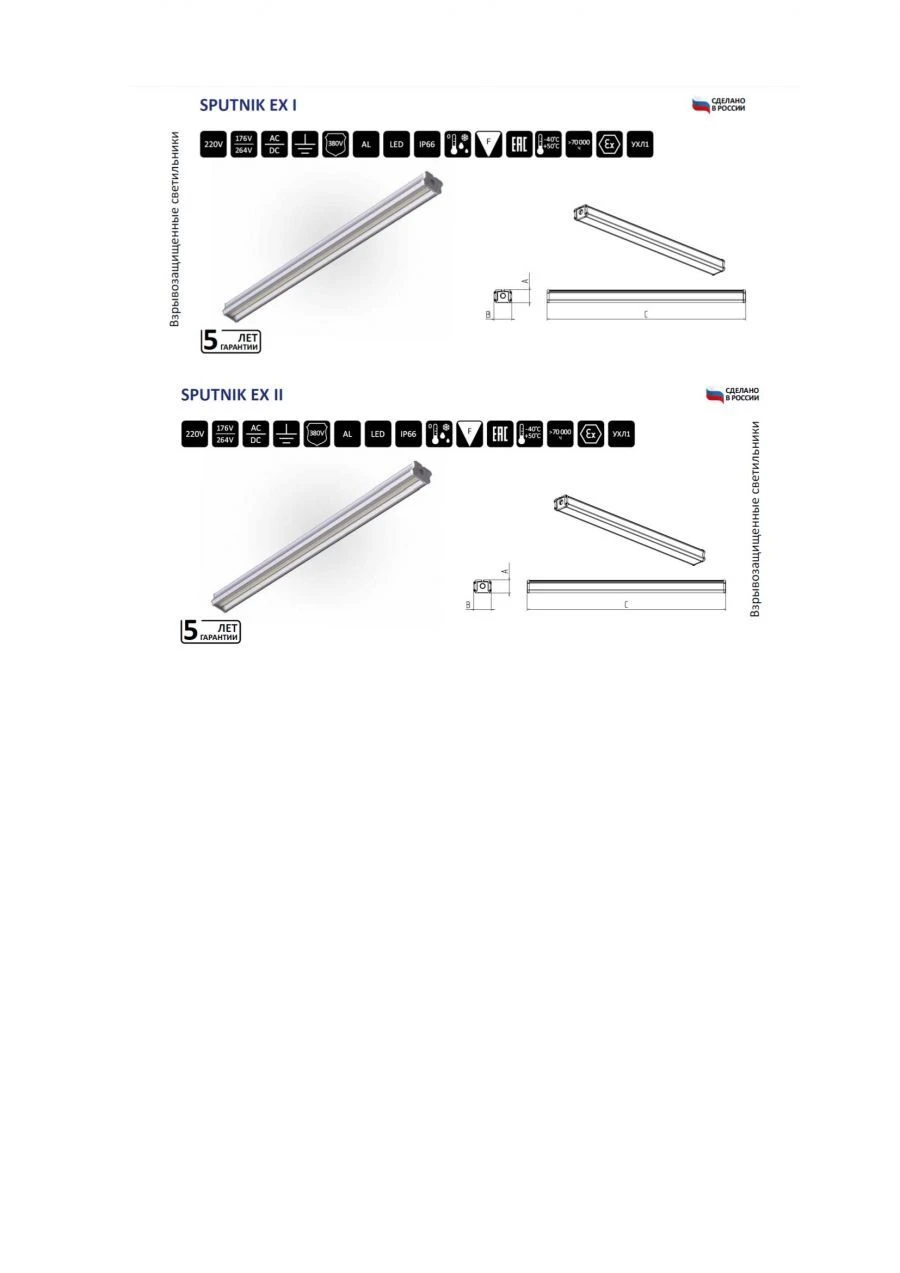

Stationary luminaire SPUTNIK EX

About the PRODUCT
Explosion proof aluminium
LED luminaire for
explosive zones of I class,
designed for illumination
objects of oil, gas,
chemical, metallurgical,
woodworking, textile
industry and paint and varnish
paint shops. It is used in areas according to
marking of GOST IEC 60079-10-1-2013,
Ch. 7.3 PUE. Atmosphere types II or III (according to
GOST R IEC 60079-20-1-2011), as well as
in areas hazardous for ignition of
combustible dust 21 and 22 (according to GOST IEC
61241-3-2011)
CONSTRUCTION
All-metal housing
all-metal body of the luminaire, made of corrosion-resistant
aluminium alloy with protective
anodised coating.
All elements and components are hermetically sealed inside the housing.
all elements and
live parts. Cable entry
is pre-inserted with
by means of a special grommet.
There are screws inside and outside
earthing bolts
OPTICAL PART
Transparent screen made of
impact-resistant light-stabilised polymer.
light-stabilised polymer. Secondary optics made of
impact-resistant light-stabilised polymer.
but...
