?????????? ???-01-AF-50??-ICL-NEMA

LED Spotlights and Luminaires

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

?????????? ???-01-AF-100??-ICL-NEMA

Description

The luminaire is designed for functional lighting of sports grounds, squares, open spaces for various purposes. It is installed on a support or bracket with the appropriate mounting plates.
In the housing installed LED modules with lenses, inrush current limiter, power supply unit LEDs, from which outside through the cable gland and bracket led wire with a cross-section of 3x0.75mm2 to connect the luminaire to the network 220V.

Specifications

Power consumption, W SBVVBG W

Power factor 0.95

Correlating color temperature (CCT) 2700...5000 K

Lower operating temperature value -40 °C

Net weight 4.7 kg

Color rendering index (Ra) 70...80

Housing material Aluminum

Upper operating temperature value 40 °C

Luminous flux, lm 125 lm

Pulsation factor 0.05 %

Degree of protection (IP) 66

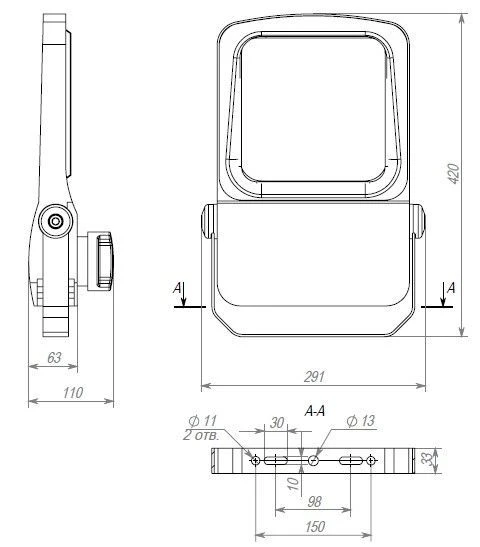

Overall dimensions, DxWxH 291*110*422 mm

Protection class against electric current 1

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Rated supply voltage 220 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
