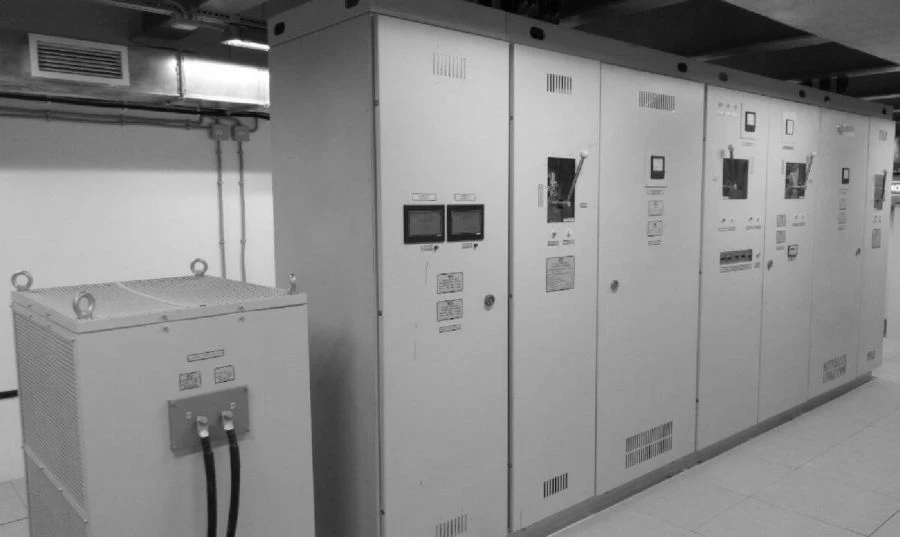

Static Thyristor Excitation System SCS-KNFR-250-2100-2.5 for Generator Control
Manufacturer:
ELSIB PJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Static thyristor excitation system (STS) is designed to supply excitation windings of generators with automatically regulated direct (rectified) current. The STS is a static thyristor excitation system made according to the self-excitation scheme with 100% redundancy of power converters and regulation channels, with a full set of excitation system protections based on an industrial processor. The excitation system has high reliability indicators according to GOST 21558-2018.
Specifications
Weight
10190 kg
Height
15828 mm
Length
10032 mm
Width
6200 mm
Rated voltage; rated excitation voltage
250 V
Rated current; rated field current
2100 A
Rated power
525 kW
Multiplicity of boost by excitation voltage at rated supply voltage
2.5
Current boost multiplicity
2
