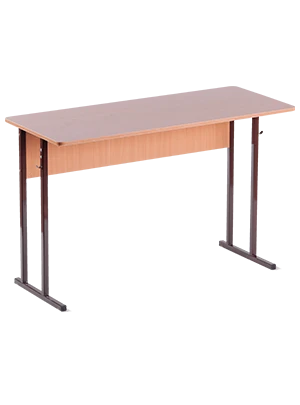

STANDARD Pupils' two-seater table with constant parameters, type 1

Pupil's table SU 02. 02. 02. XX two-seater non-adjustable height 4, 5, 6, 7.
Purpose:
For equipment of workplaces of pupils in educational institutions.
Technical characteristics:
The table is made on a metal frame made of thin-walled steel pipes with the use of LDFP of emission class E1, 16mm thick. The surface of the table can be lined with chemically moisture-resistant plastic. The edges of the cover are rounded with a radius of 30 mm. Elements of the table made of chipboard are lined with impact-resistant PVC edge 0, 4-2mm. Fastening of the headboard to the frame using 7x70mm Euroscrews. The cover is fixed to the frame with M6 screws through metal lugs, which allows the table to keep a smooth surface. The frame is made of steel profile 25x25x1, 2mm, painted with protective polymer-powder enamel. The ends of the pipes are covered with plastic plugs, plastic supports are built into the base of the frame. There are metal hooks on the sides of the table. Produced in four height groups (4-7) in accordance with GOST 11015-93 (ISO 5970-79).
