Available for Import

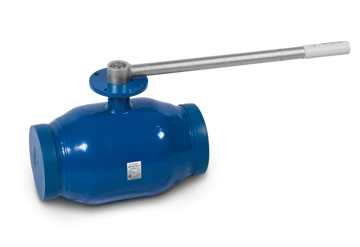

Standard bore ball valve 282, with flange for actuator installation, 28220250
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Available Models
Standard bore ball valve 282, with flange for actuator mounting, 28220150
Standard bore ball valve 282, with flange for actuator installation, 28220500
Standard bore ball valve 282, with flange for actuator installation, 28220200
Standard bore ball valve 282, with flange for actuator installation, 28220300
Standard bore ball valve 282, with flange for actuator installation, 28220350
Description
Connection type:
welded/welded
Working Environment:
Heating water, oil products, petroleum products, fuels and lubricants, gaseous and other working media not aggressive for materials
valve parts.
welded/welded
Working Environment:
Heating water, oil products, petroleum products, fuels and lubricants, gaseous and other working media not aggressive for materials
valve parts.
Specifications
Airtightness class
Class "A" GOST 9544-2015
Diameter
250 mm
Nominal pressure
25 MPa
Construction length
510 mm
Weight
60.25 kg
Connection type
Welded
Aisle
Standard
Flange for mounting the actuator
with flange
Execution
ordinary
Enclosure materials
Steel 20/09G2S/12Cr18Ni10T
Minimum temperature, up to
-40 °C
Maximum temperature, up to
200 °C
Service life, at least
25 a
Warranty period
3 a
Warranty period, cycles
10000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
