Ball valves DN10-100 mm for pressures nominal PN1,6-16,0 MPa inclusive of all versions intended for delivery to the orr

Ball Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

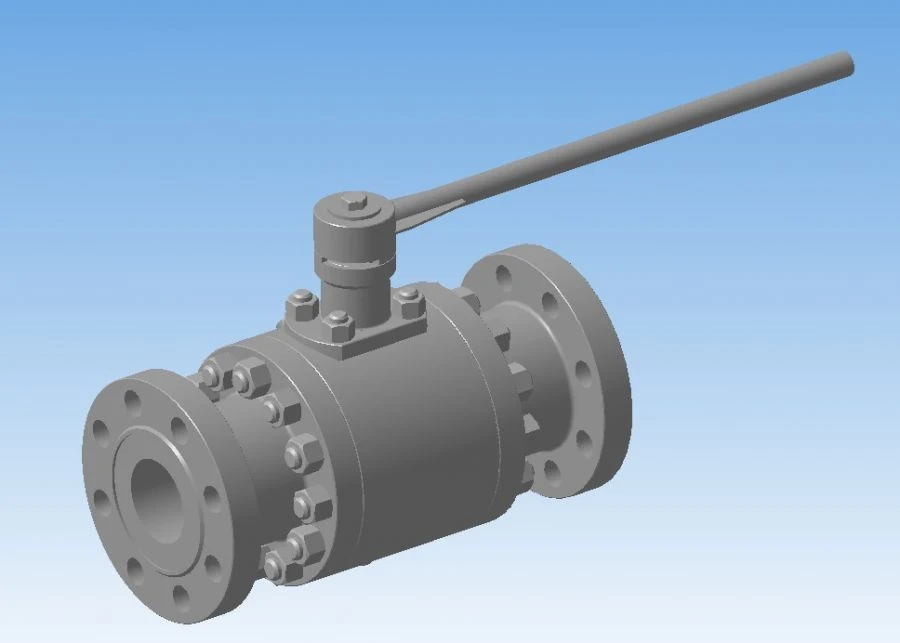

Ball valves DN10-100 mm for pressures nominal PN1.6-16.0 MPa inclusive of all versions, intended for delivery to organisations belonging to PJSC Transneft. The valves are designed for hermetic shut-off of the working medium flow in pipelines at the facilities of trunk pipelines. They are manufactured for aboveground installation in the open air without protective structures against atmospheric influences. They provide the possibility of two-way direction of working medium flow.

Technical Specifications

Nominal diameter DN	10 mm 15 mm 20 mm 25 mm 32 mm 40 mm 40 mm 50 mm 65 mm 80 mm 100 mm mm
Nominal pressure PN	1.6 MPa 2.5 MPa 4 MPa 6.3 MPa 10 MPa 16 MPa MPa
Material of manufacture	carbon steel (steel 20; 25l, etc.); low-alloy steel (09g2s; 20gl, etc.); high-alloy stainless steel (12x18n9t; 12x18n10t; 12x18n9tl, etc.); high-alloy stainless steel with molybdenum content (10x17n13m3t, etc.); sta
Housing type	Collapsible; all-welded
Pipeline connection type	flanged; coupling; socket; socket-nipple; welded to pipeline; combined
Actuator (control type)	manual (handle or gearbox); electric
Valve body flow type	full bore
Direction of medium flow	any
Type of climatic version according to GOST 15150	temperate climate (u1) cold climate (hl1) temperate and cold climate (uhl1)
Installation	above ground

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
