Stabilisation column reboiler

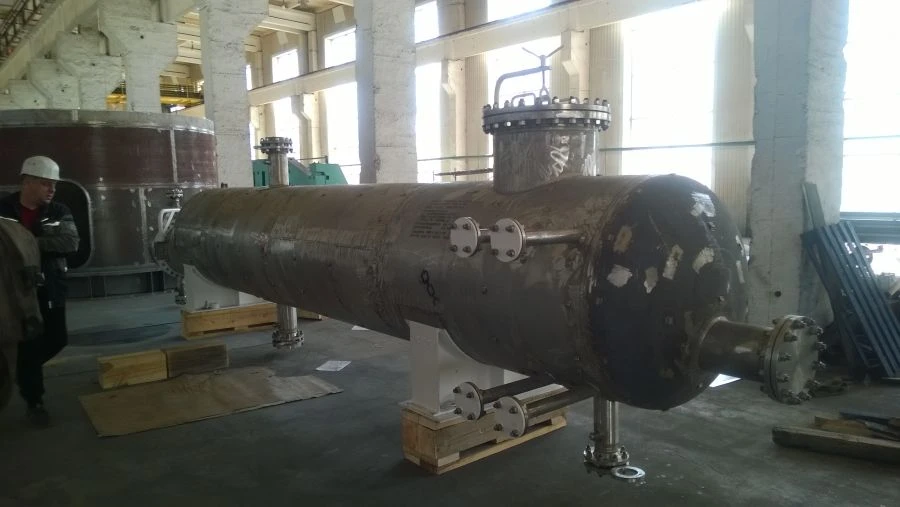

Stabilisation column reboiler 1000IP-1,6-2,5-M**/25G-6-K-4-I-U is designed for operation in delayed coking unit. Stabilisation column reboiler 1000IP-1,6-2,5-M**/25G-6-K-4-I-U - Evaporator with vapour space, with diameter - 1000; for conditional pressure in pipes - 1,6 MPa and in the casing - 2,5 MPa; execution by material M**: body, pipe grid, floating head cover - 12?18?10? heat-exchange pipes - 08?18?10?, the rest - 09?2?; with smooth heat-exchange pipes with diameter - 25, length - 6m, with pipes arrangement in the pipe board on a square; 4-way on a pipe space; with details for fastening of heat insulation; place of installation in a moderate climate. Reboiler column stabilisation 1000IP-1,6-2,5-M**/25G-6-K-4-I-U: design pressure 1,5 MPa; average allowable air temperature from -40 C; working environment - liquid: in the intertube space - heavy gasoil, in the tube space - petrol; capacity: tube space - 0,4 m3, intertube space - 4,5 m3;....
