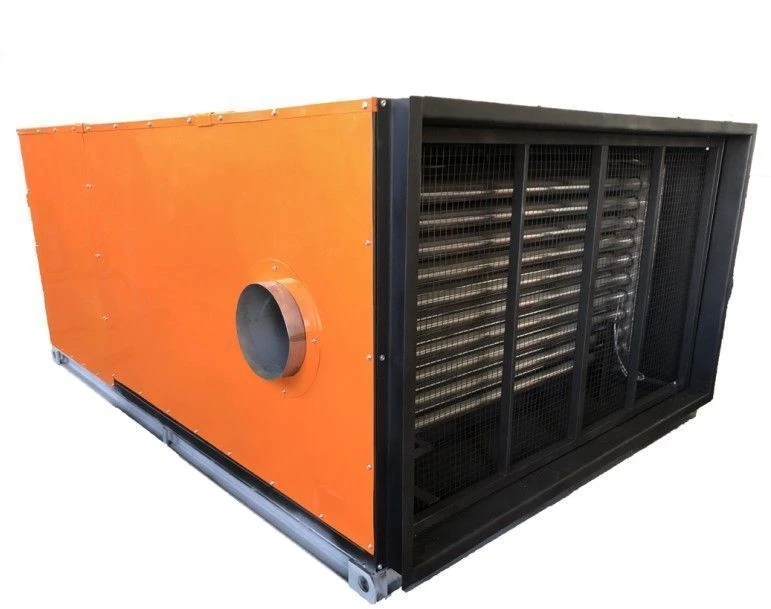

Heat exchanger (air heater) of horizontal outdoor arrangement of NORDMATIC brand, HT-O series, capacity 100 kW

The heat exchanger NORDMATIC model HT-O are fully automated industrial heating units of regenerative type. Designed for air heating of buildings, structures and premises of any type. They are used for connection to supply and discharge air ducts and consist of 3 modules: fan, heat exchanger, burner protection casing.
The special feature is the horizontal layout. In this design, the entire heating section is located in a horizontal plane, and the fan module blows the heat block not from below, but from the side, thus reducing the height of the equipment, but increasing the length dimension.
This model is suitable for placement on the roof. Firstly, the wind load on the unit itself is reduced, secondly, the pressure exerted by the heat generator on the roof structure is distributed over a larger area, which significantly reduces the load, at the same time, the TG is made in the outdoor version, which protects it from atmospheric influence.
