Spot quartz pressure and temperature sensor

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

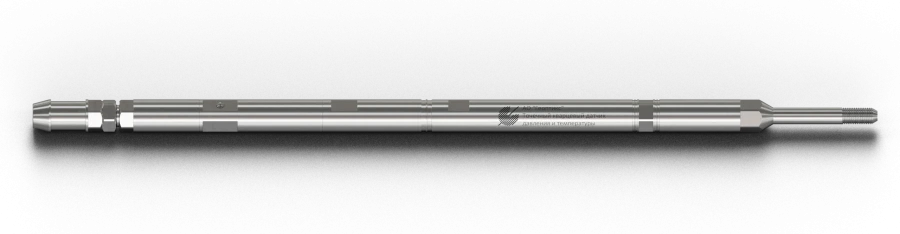

Designed for temperature and pressure measurement with high accuracy. Structurally, the sensor is made in a corrosion-resistant housing made of high-strength stainless steel, withstanding high pressure and temperature. The diameter of the sensor housing is 19-26 mm, which allows mounting the sensor on the tubing in holders with small dimensions, which in turn significantly simplifies the sensor installation in the well and reduces the risk of damage to the sensor in the process of running the assembly. The principle of operation in pressure measurement is to measure the resonant frequency of the quartz resonator, which is a function of the pressure acting on the resonator. The conversion function is temperature dependent.

Technical Specifications

Diameter	19...26 mm
Limits of permissible reduced error of absolute pressure measurements at the release from production from the API	0.02 %
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Temperature measuring range	175 °C
Limits of permissible absolute error of temperature measurements	0.1 °C
Pressure measuring range	140 MPa
Weight of quartz point pressure and temperature sensor	4 kg
Rated DC supply voltage	26 V
Average service life of the quartz point pressure and temperature sensor	30 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
