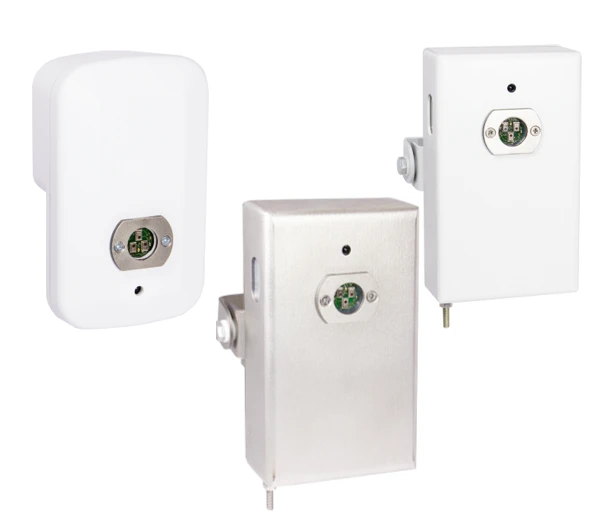

Spectron-801-Exm-N Flame Detector with 3-IR Technology

Available for Import

Spectron-801-Exm-N Flame Detector for Maximum Interference Resilience

Fire Alarm Detectors

Manufacturer: SPEKTRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

3-IC fire flame detector Spectron series 801-Ehm. Immunity category - 1 (Maximum) super interference immunity to heavy optical interference. Recognises manual arc and argon welding as spurious interference.

It is used in open areas and in enclosed spaces with severe operating conditions. Temperature range from - 55 to + 75°C. Viewing angle 90°.

Flame detection range - 25 m at TP5 and TP6. 4 modes of operation with different range and time of flame detection. There is a function of transmitting a fault signal, tested with a test light, but only with a 4-wire connection.

Detectors can be linked to a specific lantern by means of an identification code. IP66/IP68. Explosion protection marking.

PB Ex mb I Mb X/1Ex mb IIC T6 Gb X/Ex mb IIIC T85ºC Db X. Enclosure - stainless steel. Overall dimensions (HxWxG) 135x109x104 mm.

Specifications

Weight

800 year

Overall dimensions

135x109x104 mm

Viewing angle

Flat grinder, Specialised grinder

Spectral sensitivity

3-IC.

Degree of protection of the shell, IP

Operating temperature range

75 °C

Operating temperature

(55);+75 °C

Designation

FIRE FLAME DETECTOR IP330-2-1

Assignment

Recommended for fire alarm systems and fire extinguishing systems

Explosion protection marking

PB Ex mb I Mb X/ 1Ex mb IIC T6 Gb X/ Ex mb IIIC T85ºC Db X

Housing material

stainless steel

Power supply voltage

12...32 V

Sensitivity levels

Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
