Linear Smoke Detector IPDL-D-I/4r for Fire Safety

Available for Import

Linear Smoke Detector IPDL-D-I/4r for Reliable Fire Safety Monitoring

Fire Alarm Detectors

Manufacturer: POLISERVICE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

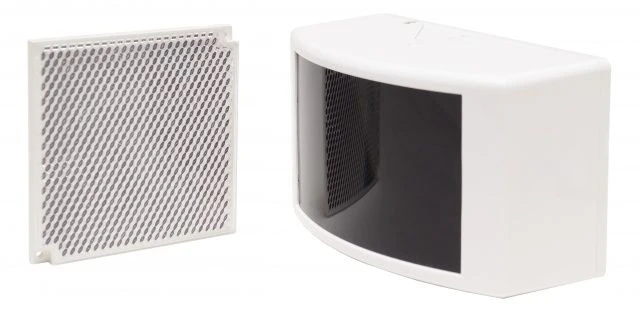

The fire smoke detector linear IPDL-D-I/4p is a single-position device designed to work together with the reflector included in the delivery set. The reflector does not require power supply and adjustment. The detector is designed for fire protection of objects with difficult operating conditions due to extended zones, large areas and high ceilings. The detector forms an optical beam passing through the controlled environment outside the detector and gives a fire signal in case the intensity of the beam is weakened by the environment in case of smoke. The detector is structurally designed in the form of a monoblock consisting of a base, with the IPDL board mounted on it, the optical system and a cover with a built-in light filter.

Specifications

Range

8...100 m

Detector weight

0.6 kg

Average service life

10 year

Mean time between failure of the detector in standby mode

60000

Controlled area

900

Time of switching to standby mode after supply voltage is applied

Type of communication line with child devices

Non-addressable loop

Operating temperature range

-25...55 °C

Housing material

Plastic

Power supply voltage

8...28 V

Consumption current at 12 V power supply, mA

SBVVBG

Degree of protection of the shell, IP

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
