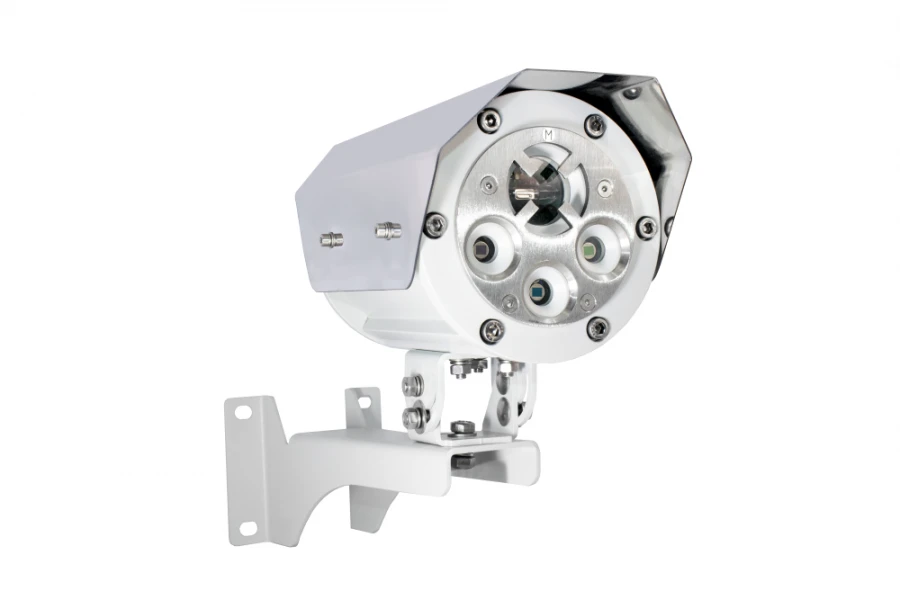

Spectron-701-Exd-A fire flame detector

Fire Alarm Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

3 IR fire flame detector Spectron series 701-Exd. Immunity category - 2. Super noise immunity to heavy optical interference. They are used in open areas and in enclosed spaces. Detection range on TP-5 - 30 metres, on TP-6 - 30 metres. Viewing angle of 90°. Upit - 9..28V. Idezh - 10mA, Ipozh - 10mA. I with heating up to 290mA. Temperature range from -70 to +90°C, short-term operation of the detector at temperatures up to +135°C is possible. IP66/IP68. Overall dimensions (HxWxG) 200x120x300.

Specifications

Weight 4 kg

Overall dimensions 300x200x125 mm

Viewing angle Flat grinder, Specialised grinder

Recovery time 8

Type of climatic version according to GOST 15150 UHL1, OM1

Resistance to three electric arc or argon welding stations 4 m

Connection 4-wire

Degree of protection of the shell, IP 68

Operating temperature range Flat grinder, Specialised grinder °C

Operating temperature (55);+90 °C

Designation FIRE FLAME DETECTOR IP330

Assignment Recommended for fire alarm systems and fire extinguishing systems

Operating temperature range Flat grinder, Specialised grinder °C

Explosion protection marking 1Ex db IIC T6...T4 Gb X / Ex tb IIIC T85ºC...T135ºC Db X

Housing material Aluminum alloy

Power supply voltage 9...28 V

Sensitivity levels T5/T6

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
