Spectron-601-Exd-A fire flame detector

Fire Alarm Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Spectron-601-Exd-A-HART fire flame detector Spectron-501-Exd-A fire flame detector

Description

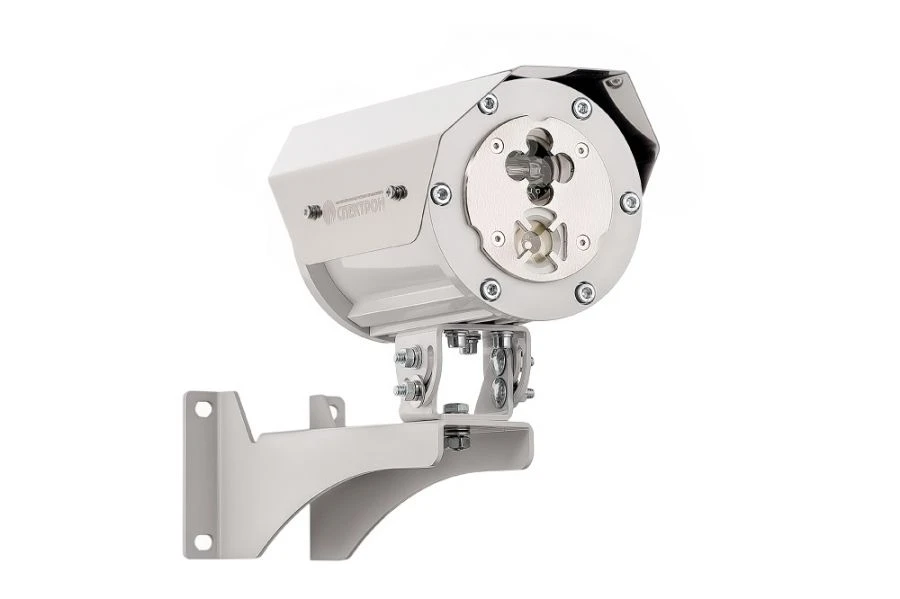

Sensor in the case of aluminium alloy. Spectron-601-Exd-A is a fire detector flame detector with a self-monitoring function, operating in the infrared and ultraviolet ranges. The detector is equipped with a self-test function with transmission of the "Fault" signal to the control panel. Meets the requirements for explosion-protected equipment of subgroups II A, IIB, IIC according to TR TS 012/2011, GOST 31610.0-2019 (IEC 60079-0:2017), GOST IES 60079-1-2013) Designed for operation in hazardous areas of classes "1" and "2" of closed objects and outdoor installations. Additional mine explosion protection marking allows the detector to be used in underground workings of mines, mines and their above-ground structures. The detector operates only on a 4-wire connection scheme. Range up to 25 metres.

Specifications

Weight 2.8 kg

Overall dimensions 128x231x279 mm

Connection 4-wire

Recovery time 8

Type of climatic version according to GOST 15150 UHL1, OM1

Viewing angle Flat grinder, Specialised grinder

Resistance to three electric arc or argon welding stations 4 m

Protection against impulse overvoltages (surge protection) according to GOST R 51992-2002 III

Degree of protection of the shell, IP 68

Operating temperature range Flat grinder, Specialised grinder °C

Operating temperature (55);+90 °C

Designation SPECTRON 600 Series 600 Multidirectional IR/UV IP329/330 Flame Detector

Assignment Designed for fire extinguishing systems and fire alarm systems at oil and gas facilities and their infrastructure

Operating temperature range Flat grinder, Specialised grinder °C

Explosion protection marking 1Ex db IIC T6...T4 Gb / Ex tb IIIC T85ºC...T135ºC Db

Housing material Aluminum alloy

Power supply voltage 9...32 V

Sensitivity levels Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
