Special angler "SEITRONIK US4"

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

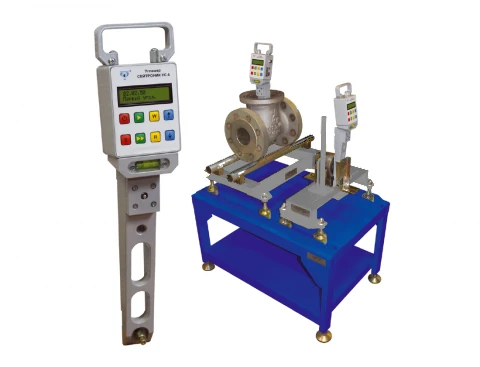

The device is designed to measure the angle between the sealing surfaces of the gate elements (body and wedge) of wedge gate valves during their manufacture and repair in order to ensure the tightness of the gate in accordance with GOST 33257-2015 and to achieve the required class of tightness of the wedge gate valves in accordance with the standards of tightness according to GOST 9544-2015. Angle meters are manufactured in three versions depending on the nominal diameter (DN) of the controlled pipeline valves (wedge gate valves). SEITRONIK US4" anglemeters of versions 1, 2 are used in a complex with auxiliary equipment (fixtures), which are not included in the set of obligatory delivery.

Technical Specifications

Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Nominal diameter (DN) of controlled wedge gate valves (Version 1 "SEITRONIC US4-1"), mm	50…250
Nominal diameter (DN) of controlled wedge gate valves (Version 2 "SEITRONIC US4-2"), mm	300…500
Nominal diameter (DN) of controlled wedge gate valves (Version 3 "SEITRONIC US4-3"), mm	600…1000
Measuring range of angle of sealing surface deviation from vertical, deg.	1…9
Measuring range of angle between sealing surfaces of gate valve body or wedge, deg.	2…18
Principle of action	Contact
Type of measurement readout	Digital
Absolute error tolerance limit, arc sec.	±30
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Discreteness of readout, ang. sec.	10

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
