Soil pressure sensor TSGE.001.010.000

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

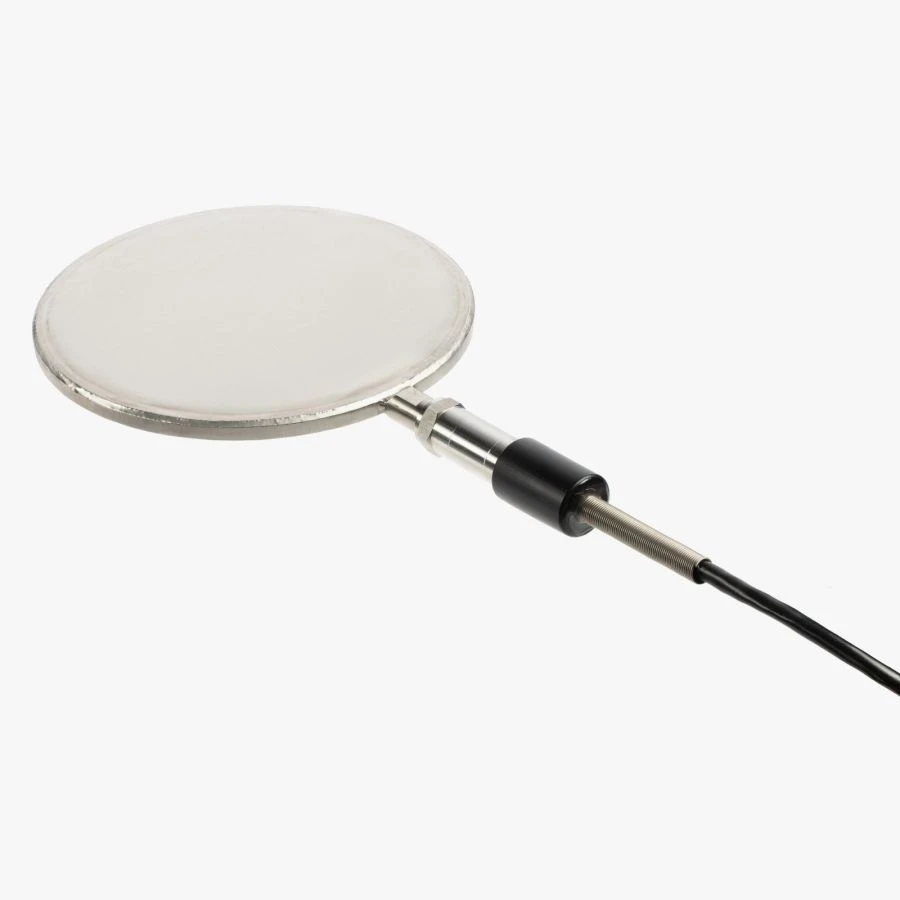

Ground pressure sensor (VMP-DG) is designed to measure the pressure occurring in soils under linear objects and building structures. It is used both for control during construction of the object and for long-term geotechnical monitoring, including remote monitoring. DDG is a metal disc with a cavity inside made of stainless steel 12 mm thick. Inside it has a cavity filled with working fluid and an overpressure sensor. When loaded, the construction of the DDG is deformed, the working fluid is forced into the cavity of the overpressure sensor, which records the load values in real time. DDGs can be assembled in a daisy chain of up to 20 pieces and connected by a signal cable to a data logger, which processes the digital signal, sets the frequency of data reading from the DDG and sends it to the data acquisition server. The range of DDGs includes several sizes with a force measuring range of 0.01 - 10 MPa. Modbus RTU; HART, RS 485 / IP68.

Technical Specifications

Number of cores	4 pc
Core diameter	0.9 mm
Diameter by insulation	2.1 mm
Braid density	Flat grinder, Specialised grinder %
Cable diameter	10.8 mm
Weight (with cable)	5 kg
Warranty period of operation	1 a
Service life	5 a
Permissible temperature range for transportation, storage and presence in the structure to be measured	-50...80 °C
Type of product according to PP RF 616	Other tools and instruments for measurement, inspection and testing
Measuring range	0...1 MPa
Limits of permissible reduced error of measurements	0.25...-0.25 %
Limits of permissible additional reduced error of measurement due to temperature influence	0,05 % / 10 degrees Celsius °C
Sensitivity	0.075
Minimum depth of installation	SBVVBG cm
Maximum setting depth	13 m
Vibration resistance	10...2000
Cable length	1000 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
