Hydraulic test bench

Testing of turbojet engine units both as a part of the system and per-unit in accordance with the requirements of technical specifications. It is possible to modify the stand for testing similar units of other systems.

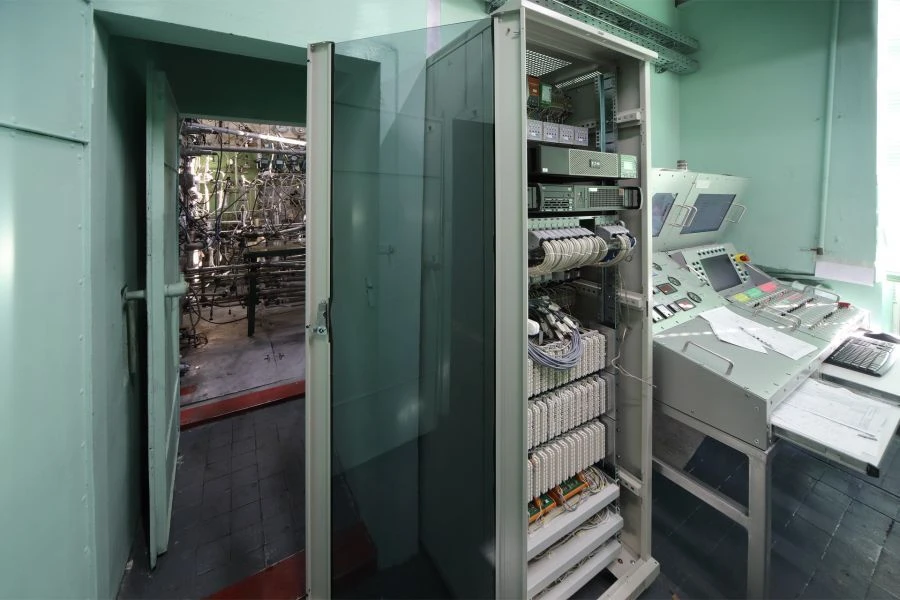

IUK of the stand:
-Hardware measurement complex (APIC-3)
-Crate data acquisition system LTR-16
-Industrial PC
-Signal conversion boards
-Switching equipment

APIC-3 in combination with LTR-16 allows to obtain:
- Up to 200 design parameters
-120 measurement channels
-16 analogue outputs
-32 discrete outputs
-Measurement error - 0,05%

Which allows:
-conduct flow measurements without expensive auxiliary equipment, with increased measurement accuracy,
-unify the stand, with the possibility of adapting it to other types of units.
