SmartNexus Multifunctional Industrial Controller 3428

Telecommunication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

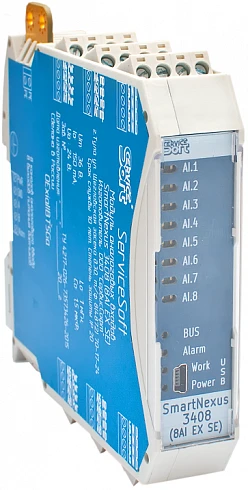

SmartNexus 3408 multifunction industrial controller SmartNexus Multifunctional Industrial Controller 3418

Description

The SmartNexus 3428 multifunctional industrial controller is designed to collect data from electrical sensors of remote technological objects with their subsequent processing, storage and transmission of data to the main (head) module SmartNexus 110D. The controller provides formation and transmission of alarm messages in case of process parameter values exceeding the set limits and allows monitoring of emergency situations. The controller allows flexible setting of parameters of collection, storage and transmission of measured values, as well as selection of standard and specialised data exchange protocols. The controller performs automatic archiving of measured data available after a power failure of the controller. Explosion protection level "Explosion-proof" for explosive gas mixtures of category IIB, meets the requirements of GOST 31610.0 (IEC 60079-0), GOST 31610.11 (IEC 60079-11).

Specifications

Number of RS-485 interface ports (T-BUS) 1, pcs.

Output voltage (in stabilized current source mode) Up to 24, V

Output current (in stabilized current source mode) Up to 1.05, mA

Maximum output current for sensor power supply, not less than 25, mA

Voltage range for sensor power supply 5-24, ?

Basic reduced error of measurement with analog inputs 0.5 %

Number of analog inputs 8, pcs.

Current consumption in operating mode 80, mA

Controller power input «ib»

Output control channels «ia»

Other input channels «ia»

Input measurement channels «ia»

Hardware supported protocols MODBUS

Number of USB ports 1, pcs.

Discrete input/output to generate an "Alarm" signal 1, pcs.

Current consumption in power saving mode,max. 15, µA

Installation method DIN rail

Degree of dust and moisture protection IP20

Weight, not more 160, ?.

Maximum allowable DC supply voltage range (Upit.) 4,5 - 30, ?

Overall dimensions 115 x 115 x 30, mm.

Climatic version ?1

Weight, not more 160, ?.

Maximum input voltage, Ui 30, ?

Maximum input current, Ii 2, ?

Maximum input power, ?i 7.5, W

Maximum internal inductance, Li 47, µHn

Maximum internal capacity, Ci 0.5, µF

Data communication interfaces (RS-485) «ia»

Sensor power supply outputs «ia»

Number of outputs for sensor power supply 8, pcs.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
