Dispatching mosaic shield Shield ShDM-25

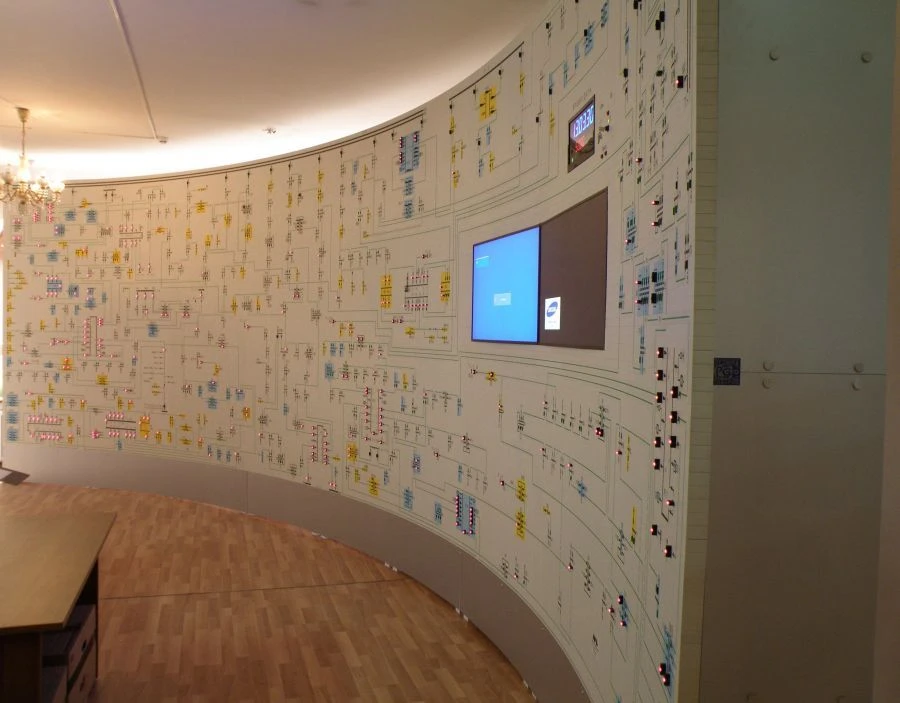

Shield dispatch mosaic ShchDM-25 is designed to display mnemonic schemes of electric, thermal and other networks, assembled from mosaic elements with graphic images applied to them. ShCDM-25 allows displaying telealarming data by means of passive and active (LED) mosaic elements, telemetering data by means of digital indicators, AC frequency value and current time. The mosaic canvas of the shield consists of a plastic lattice made of frames connected with each other by "double dovetail" cotter pins and square cells (mosaic elements) installed on the lattice. The size of the mosaic element is 25x25 mm. Mosaic elements have latches for tight fixation in the grid. Display of TV information on the panel is carried out by means of controllers, modules and harnesses of the panel control system.
ShchDM-25 is a project-component product, the composition and dimensions of which depend on the required mnemonic scheme and the necessary display detailing.
